Oxidation catalytic converter, location/task/design/function - GF49.10-P-3000GB
ENGINE 112.945 in MODEL 463.244 /245 /250
ENGINE 113.962 in MODEL 463.247 /248 /249 /254

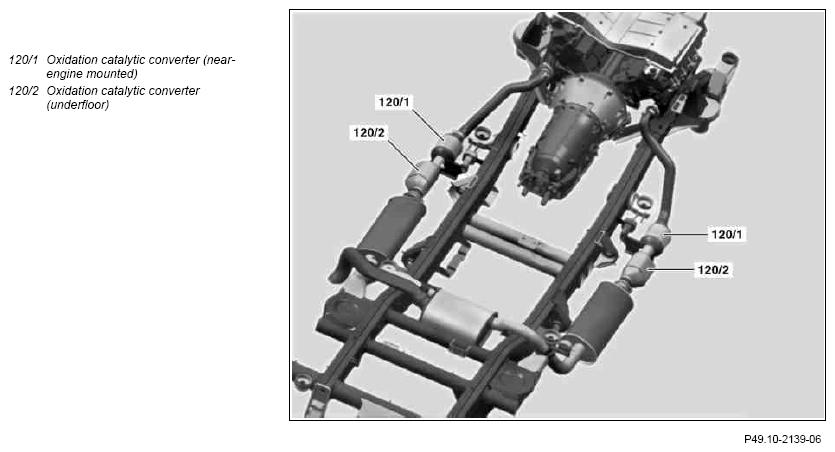

Position, shown on engine 113.962
| Oxidation catalytic converter position | Mounted on the right and left, each outside of the longitudinal frame member. | ||
| Oxidation catalytic converter task | Reducing the pollutant components of carbon monoxide (CO), hydrocarbon (HC), oxides of nitrogen (NOX
) and particulates (PM = particulate mass). |
||
| Oxidation catalytic converter design | GF49.10-P-3000-01GB | ||
| Oxidation catalytic converter function | Oxidation converts CO into CO 2 and HC into CO2 and H2 O. This reduces the emitting particulate mass (PM) because the HC adhering to the carbon (soot) is reduced during post-oxidation. In addition, a part of the oxides of nitrogen (NO X ) is converted into nitrogen (N2 ) by reduction. |
