Exhaust system design - GF49.00-P-2000-01GM
Model 463

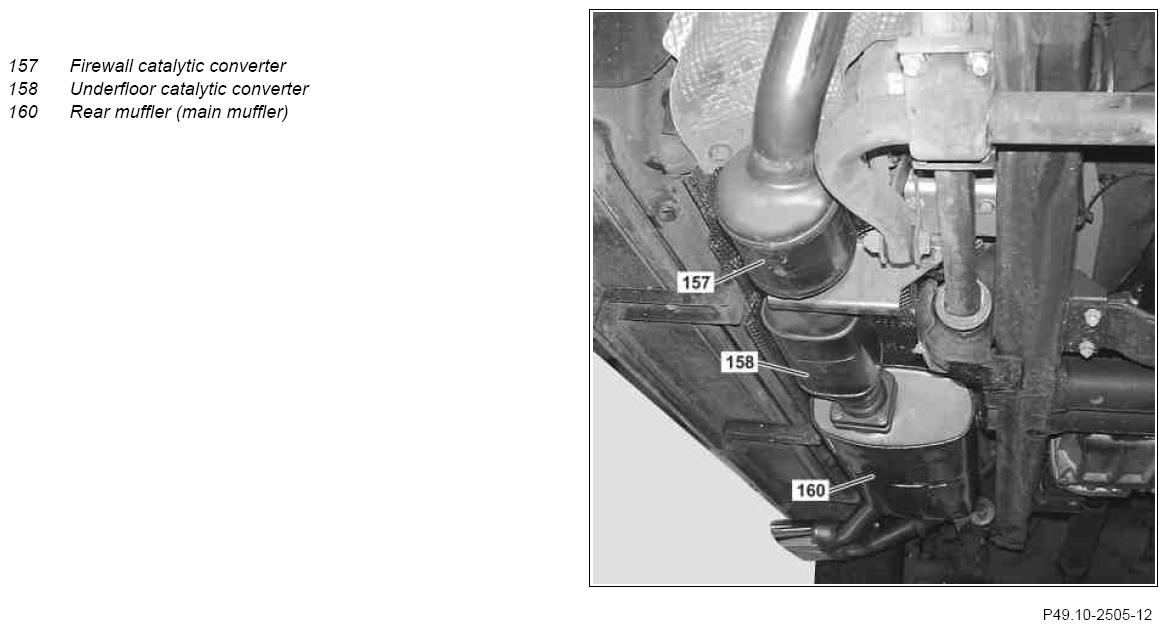

Illustrated on right side of vehicle.
The exhaust system on the left side of the vehicle is symmetrical to the right side of the vehicle.
The exhaust system is made entirely of stainless steel. This increases the life of the exhaust lines and the muffler housings. The funnel sections of the catalytic converters are a double-walled design (air gap insulation) to reduce noise.
The exhaust system of the right and the left cylinder bank have been designed separately (twin-pipe).
The exhaust system ensures that the EU 4 limits are met.
