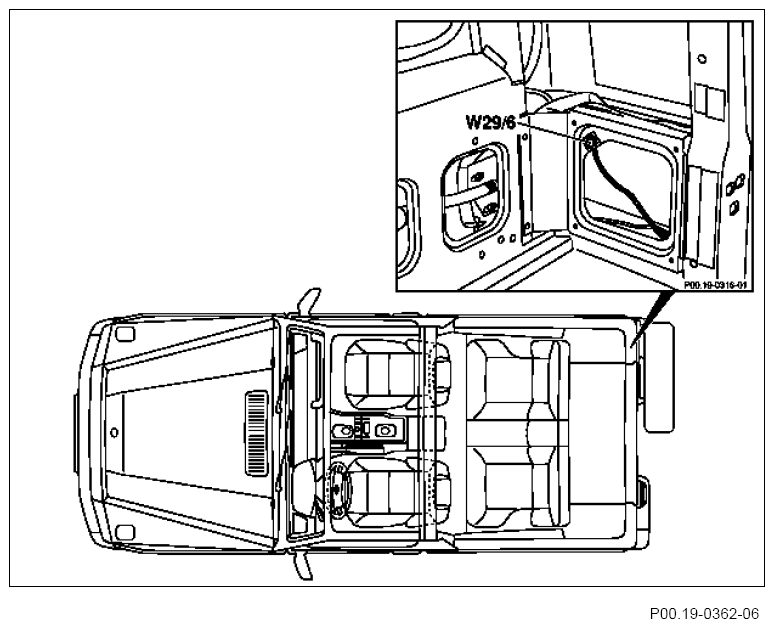

Arrangement and assignment of ground terminals, trunk (right) - GF00.19-P-2000-09I
MODEL 463 with ENGINE 112.945 Left-hand steering
MODEL 463 with ENGINE 113.962 Left-hand steering
Courtesy of MERCEDES-BENZ USA
| Ground point |
Designation |
Component |
Designation |
Conn. pin |
| W29/6 |
Ground, right rear pillar |
→ E4 |
Right tail lamp |
|
| → W7/3 |
Ground, right tail lamp |
| |
Optional SR |
→ M12/1 |
Tilting/sliding roof |
6 |
