Arrangement and assignment of ground terminals, interior compartment (right) - GF00.19-P-2000-05I
MODEL 463 with ENGINE 112.945 Left-hand steering
MODEL 463 with ENGINE 113.962 Left-hand steering
| Ground point | Designation | Component | Designation | Steck. Pin |
|---|---|---|---|---|

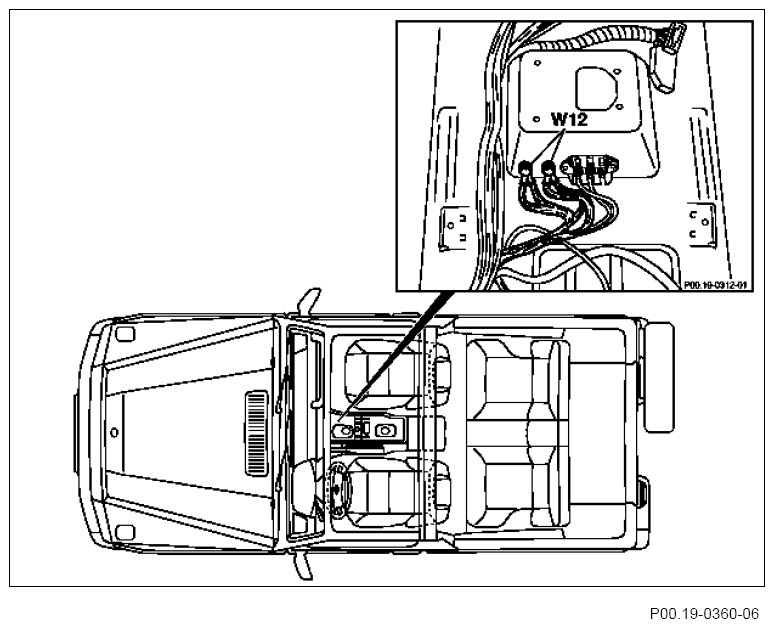

| W12 | Ground, center console | → K2 | Headlamp cleaning system (HCS) relay | 4 |
| → K26 | Wiper system relay | 4 | ||
| → M2 | Blower motor | |||
| → N14/1 | Engine off cooling relay | 5 | ||
| → R3x1 | Cigar lighter connector | 1 | ||
| → S16/10 | Transmission range recognition switch | 1.3 | ||
| → S19/1 | Right front power windows switch | 1 | ||
| → S68/1 | Left front seat belt buckle and seat belt warning switch | 1 | ||
| → X5 | Rear doors feed connector | 6 | ||
| → X58/1 | Interior socket | 1 | ||
| Valid for 5-door model | → S19/2 | Right oddments tray power windows switch | 1 | |
| → S20/2 | Left oddments tray power windows switch | 1 | ||
| → S20/4 | Child safety switch | |||
| Valid for cabriolet | → S84 | Soft top operation switch | 3 | |
| → S84 | Soft top operation switch | 4 | ||
| Optional APS | → A2/30 | Navigation processor | 1 | |
| Optional CD changer without bus A2 | → D2 | Radio | C.8 | |
| Optional ESA up to 31.5.98 | → X54/4 | Seat adjustment feed connector, 4-pin | 3 | |
| → X54/4 | Seat adjustment feed connector, 4-pin | 4 | ||
| → X54/4 | Seat adjustment feed connector, 4-pin | 3 | ||
| → X54/4 | Seat adjustment feed connector, 4-pin | 4 | ||
| Optional ESA as of 1.6.98 | → X54/4 | Seat adjustment feed connector, 4-pin | 3 | |
| → X54/4 | Seat adjustment feed connector, 4-pin | 4 | ||
| → X54/5 | Right front seat/ETR connector | 3 | ||
| → X54/5 | Right front seat/ETR connector | 4 | ||
| Optional rear wiper | → S78 | Rear window wipe/wash switch | 7 | |
| → K26/4 | Rear wiper system relay | 4 | ||
| Optional SR | → N57/1 | Convenience feature control module | C.4 | |
| → S13/2 | SR switch | 6 | ||
| Optional HS up to 31.5.98 | → N25/5 | Front heated seat (HS) control module | 9 | |
| → N25/6 | Rear heated seat (HS) control module | 9 | ||
| → S51/2 | Right front heated seat (HS) switch | 6 | ||
| → S51/3 | Left rear heated seat (HS) switch | 6 | ||
| → S51/4 | Right rear heated seat (HS) switch | 6 | ||
| → X54/12 | Left and right heated seat (HS) connector, 4-pin | 1 | ||
| → X54/12 | Left and right heated seat (HS) connector, 4-pin | 1 | ||
| → X54/12 | Left and right heated seat (HS) connector, 4-pin | 1 | ||
| → X54/12 | Left and right heated seat (HS) connector, 4-pin | 1 | ||
| Optional SR as of 1.6.98 | → N25/5 | Front heated seat (HS) control module | 9 | |
| → N25/6 | Rear heated seat (HS) control module | 9 | ||
| → S51/2 | Right front heated seat (HS) switch | 6 | ||
| → S51/3 | Left rear heated seat (HS) switch | 6 | ||
| → S51/4 | Right rear heated seat (HS) switch | 6 | ||
| → X54/9 | Heated seat feed connector | 1 | ||
| → X54/10 | Left and right rear heated seat backrest connector | 1 | ||
| → X54/11 | Left and right rear heated seat backrest connector | 1 | ||
| → X54/12 | Left and right heated seat connector, 4-pin | 1 | ||
| Optional STH | → A6 | Stationary heater/heater booster unit | 2 | |
| → K16 | Stationary heater, circuit 15/30 relay | 2 | ||
| → S46/7 | Stationary heater microswitch | 1 |
