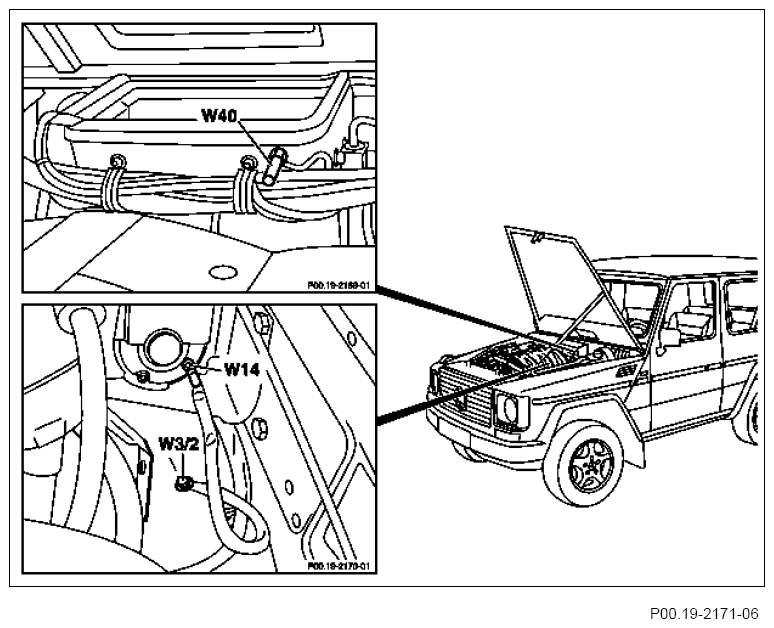

Arrangement and assignment of ground terminals, engine compartment (left) - GF00.19-P-2000-01I
MODEL 463 with ENGINE 112.945 Left-hand steering
MODEL 463 with ENGINE 113.962 Left-hand steering
| Ground point | Designation | Component | Designation | Conn. pin |
|---|---|---|---|---|
| W3/2 | Ground, left front wheelhousing | →A7/3m1 | High pressure and return pump | |
| W14 | Ground, hydraulic unit bracket | →A7/3m1 | High pressure and return pump | |
| W40 | Ground, fan box | → N3/10 | Engine control module (ME-SFI) | F.8 |
| → N3/10 | Engine control module (ME-SFI) | F.15 |
