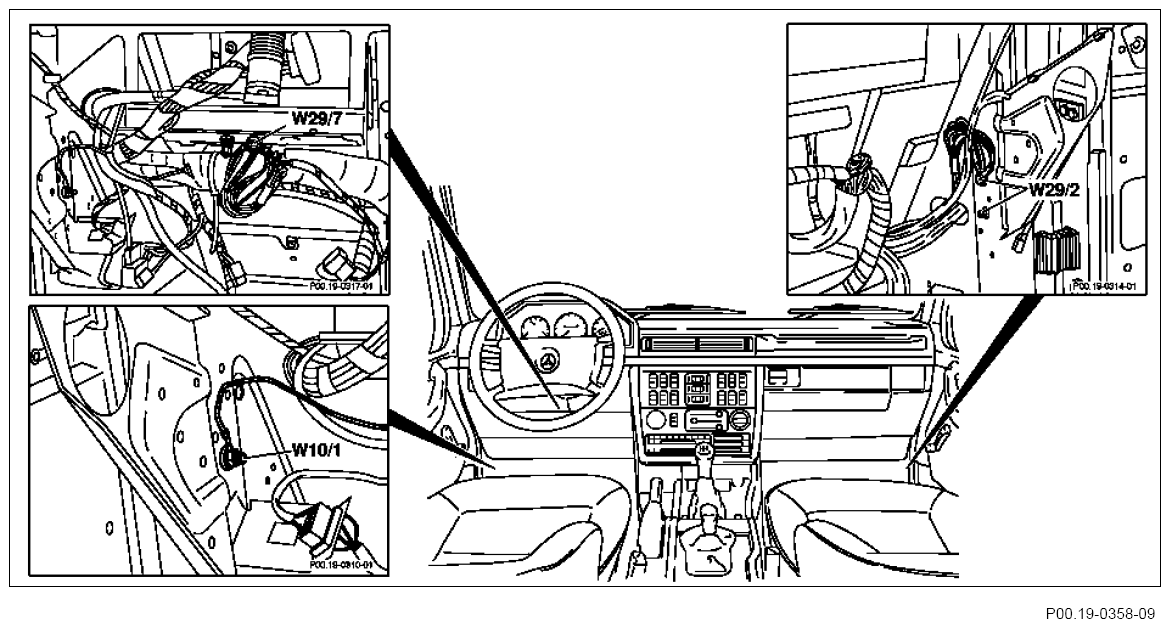

Arrangement and assignment of ground terminals (cockpit) - GF00.19-P-2000-03I
MODEL 463 with ENGINE 112.945 Left-hand steering
MODEL 463 with ENGINE 113.962 Left-hand steering
| Ground point | Designation | Component | Designation | Conn. pin |
|---|---|---|---|---|
| W10/1 | Ground, electronics | → A1 | Instrument cluster | 1A.12 |
| W29/2 | Ground, right A-pillar | → E13/1 | Glove compartment lamp | |
| → E14/5x1 | Left and right vanity mirror connector | 1 | ||
| → E22/2 | Right auxiliary turn signal lamp | |||
| → K13/1 | Rear window defroster relay | 4 | ||
| → K23 | Blower motor relay | 2 | ||
| → K24 | Convenience feature relay | 5 | ||
| → K40 | Relay module | B.5 | ||
| → M21/2x1 | Right, electrically adjustable and heated exterior mirror connector | 1 | ||
| → N3/10 | Engine control module (ME-SFI) | A.3 | ||
| → N3/10 | Engine control module (ME-SFI) | A.7 | ||
| → N3/10 | Engine control module (ME-SFI) | A.8 | ||
| → N36 | Transmission output speed sensor ballast | 8 | ||
| → N47-7 | ABS control module | B.23 | ||
| → N47-7 | ABS control module | B.47 | ||
| → N57/1 | Convenience feature control module | A.2 | ||
| → N60 | Central locking (CL) control module | 11 | ||
| → X11/29 | Test connector for fuses | 1 | ||
| → X59/5 | Bypass connector, 4-pin | 1 | ||
| Valid for 5-door model | → N57/1 | Convenience feature control module | B.7 | |
| Valid for cabriolet | → K66/2 | Close electric soft top relay | 3 | |
| → K66/4 | Electric soft top safety relay | 2 | ||
| → K66/6 | Right front soft top lock relay | 3 | ||
| Optional ATA | → H3 | Alarm signal horn | ||
| → N26 | ATA control module | 4 | ||
| → S62 | ATA hood switch | 1 | ||
| → S62/8 | ATA center console compartment switch | 6 | ||
| Optional heated windshield | → S63 | Heated windshield switch | 4 | |
| → X92 | Heated windshield cable connector | |||
| Optional CTEL | → A34/4 | CTEL interface | 3 | |
| W29/7 | Ground, steering column | → A45x2 | Clock spring contact/fanfare horns relay connector | 1 |
| → E1 | Left front headlamp unit | 31 | ||
| → E6/1 | Left turn signal lamp | |||
| → E22/1 | Left auxiliary turn signal lamp | |||
| → H2 | Fanfare horns | 1 | ||
| → M6/1 | Wiper motor | 31 | ||
| → M14/6x1 | Left front door (CL) motor connector | 5 | ||
| → M40 | Differential locks vacuum pump | 81 | ||
| → N54/1 | Infrared drive authorization system control module | 1 | ||
| → S1 | Light switch | 31 | ||
| → S4/1 | Headlamp cleaning system (HCS) switch | 7 | ||
| → S11 | Brake fluid indicator switch | |||
| → S14 | Rear window defroster switch | 7 | ||
| → S16/6 | Kickdown switch | 1 | ||
| → S18/6 | Rear interior lamp switch | 4 | ||
| → S25/5 | Auxiliary fan 2nd stage/emergency off, 105°C/115°C temperature switch | 1 | ||
| → S25/5 | Auxiliary fan 2nd stage/emergency off, 105 °C/115 °C temperature switch | 3 | ||
| → S40/4x1 | Variable cruise control switch connector | 8 | ||
| → X11/4 | Datalink connector | 1 | ||
| → X62/31 | Differential locks connector | 2 | ||
| → X62/31 | Differential locks connector | 8 | ||
| Valid for station wagon | → E15/2 | Front dome lamp with time delay and reading lamp | 4 | |
| Valid for cabriolet | → X31 | Dome lamp/reading lamp connector | 4 | |
| Optional APS | → A2/29 | Radio and navigation operating unit | A.8 | |
| Optional AC | → E9/5 | Automatic air conditioning (AAC) temperature control illumination | 2 | |
| → S31/3 | High/low pressure switch | 1 | ||
| → S32/1x1 | Pressure switch connector | 1 | ||
| → X64/7 | Auxiliary fan connector, 2-pin | 2 | ||
| → X64/7 | Auxiliary fan connector, 2-pin | 2 | ||
| Optional RD | → A2 | Radio | A.8 |
