Standing/parking lights actuation, function - GF82.10-P-3060G

MODEL 463.306 /336 /346 as of model year 2011 /YoM 10

MODEL 463.202 /222 /236 /237 as of model year 2009 /YoM 08

MODEL 463.247 /248 /249 /254 up to 31.8.08 as of model year 2007

MODEL 463.270 /271 /303 /340 /341 as of model year 2007

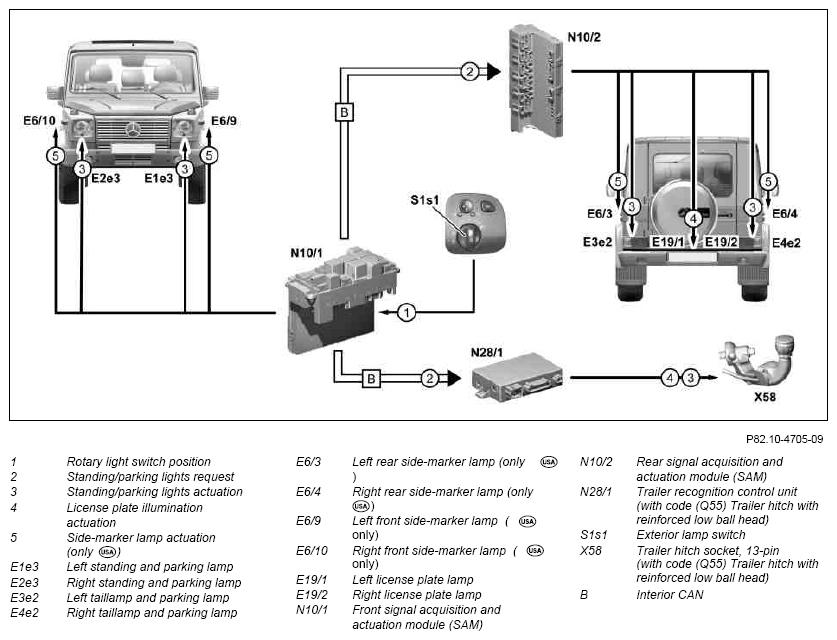

Standing lights actuation

Function requirements

• Circuit 30 ON
• Rotary light switch in standing lamps position

Standing lamp actuation function sequence

The position of the rotary light switch is read in directly by the front SAM.

The front SAM sends the switch-on request via the interior CAN (CAN B) to the rear SAM and to the trailer recognition control unit.

The front SAM actuates the following components:

• Left standing and parking lights and right standing and parking lights
• Left front side-marker lamp and right front side-marker lamp

The rear SAM actuates the following components:

• Left taillight and parking light and right taillight and parking light
• Left rear side-marker lamp and right rear side-marker lamp
• Left license plate lamp and right license plate lamp

  The trailer recognition control unit actuates the following components via the trailer hitch socket (13-pin):

• Trailer standing light
• Trailer license plate lamp

Parking lights actuation

Function requirements

• Circuit 30 ON
• Rotary light switch in right or left parking lights position

Parking lights actuation function sequence

The position of the rotary light switch is read in directly by the front SAM.

The front SAM sends the switch-on request via the interior CAN to the rear SAM and to the trailer recognition control unit.

The front SAM actuates the following components:

• Left standing and parking lights or right standing and parking lights

  The rear SAM actuates the following components:

• Left taillight and parking light or right taillight and parking light

  The trailer recognition control unit actuates the following component via the trailer hitch socket (13-pin):

• Trailer parking lights

	Component description for front SAM control unit with fuse and relay module	N10/1	GF54.21-P-6070G
	Component description for rear SAM control unit with fuse and relay module	N10/2	GF54.21-P-6030G
	Component description for trailer recognition control unit	N28/1 With code (Q55) Trailer hitch with reinforced low ball head	GF31.19-P-4050G
	Rotary light switch, component description	S1	GF82.10-P-4106G
