Interior illumination (IBL), location of components - GF82.20-P-0002-01G

Shown on model 463.341

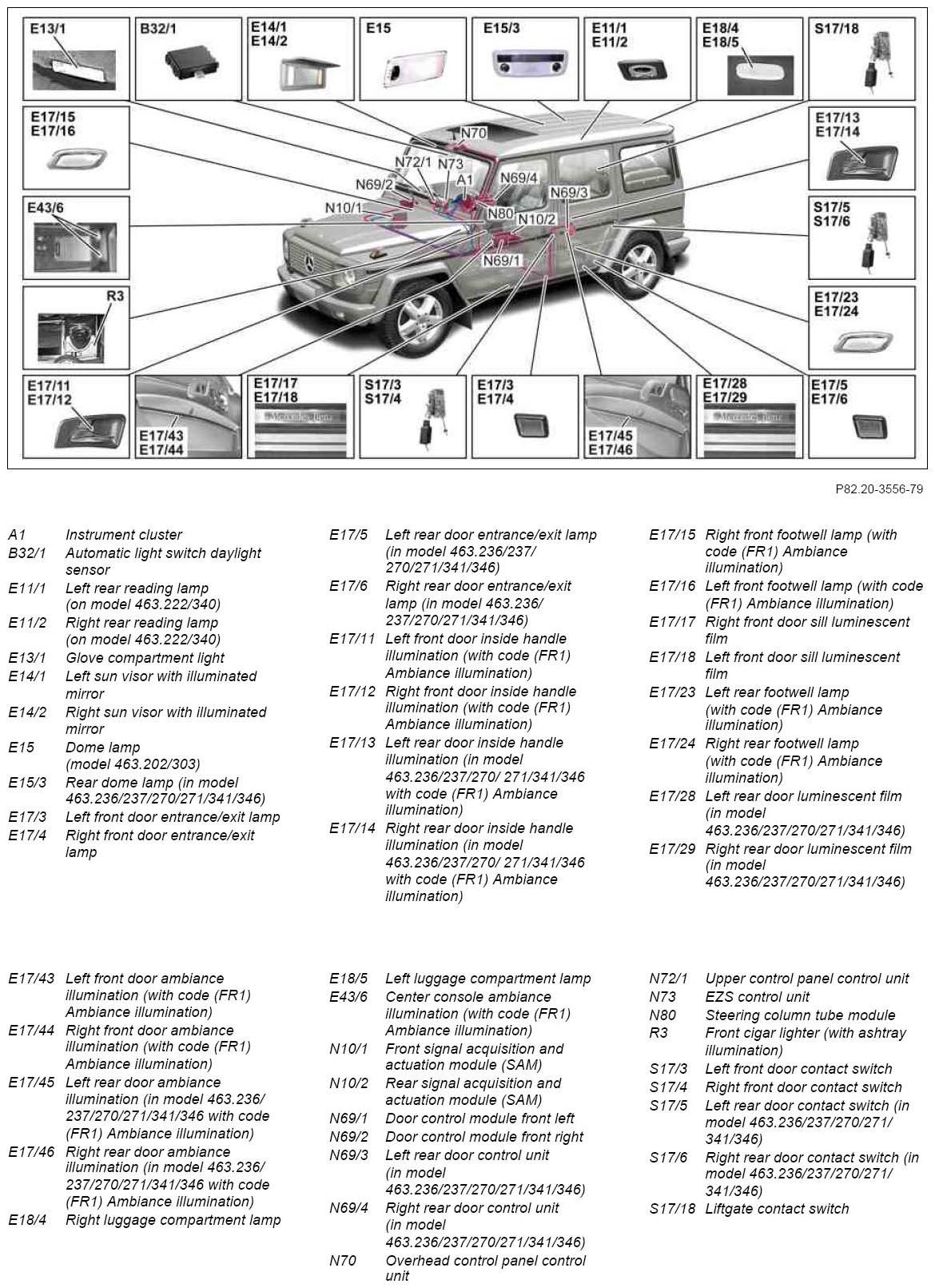

Fig 1: Locating Interior Illumination Components

G07891349

Courtesy of MERCEDES-BENZ USA
