Footwell lamp, component description - GF82.20-P-5000G
MODEL 463.306/336/346 up to 31.5.12 with CODE (FR1) Ambiance illumination as of Model Year 2010/YoM 10
MODEL 463.202/222/236/237/270/271/303/340/341 up to 31.5.12 with CODE (FR1) Ambiance illumination as of Model Year 2010/YoM 09
Illustrated on model 463.236
Illustrated on model 463.236
Location

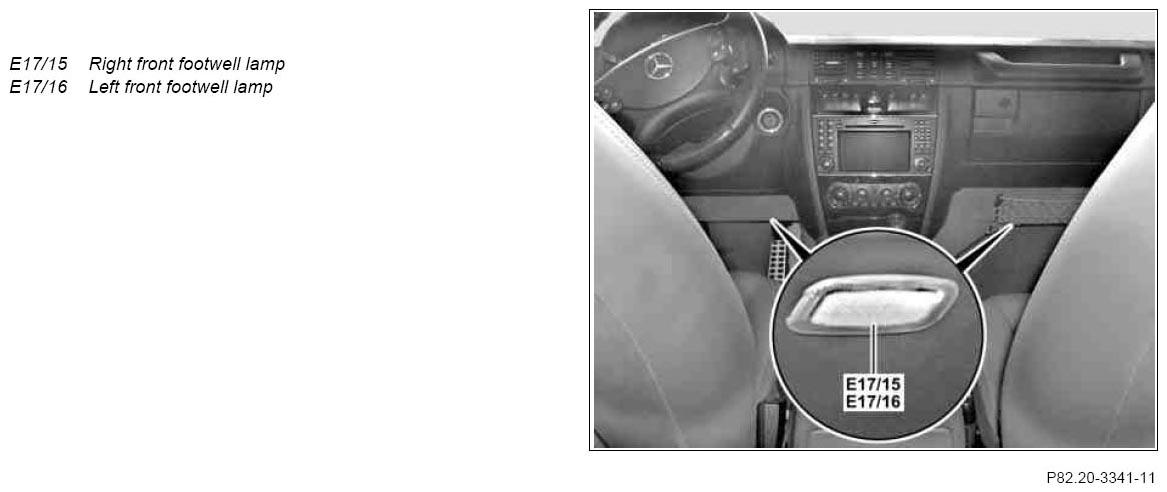

The left front footwell lamp and the right front footwell lamp are located in the corresponding footwell trim below the instrument panel.

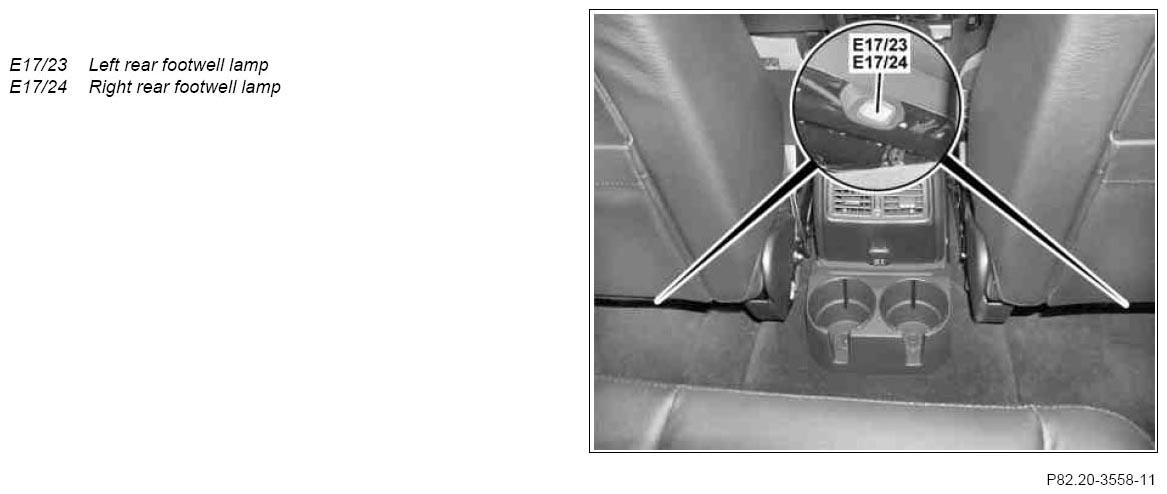

The left rear footwell lamp and the right rear footwell lamp are located at the bottom at the front seats.
Task
The footwell lamps are used to illuminate the footwell areas in darkness. The footwell lamps are actuated directly by the front signal acquisition and actuation module (SAM) (N10/1).
