Door handle illumination, component description - GF82.20-P-5040G

MODEL 463.306/336/346 up to 31.5.12 with CODE (FR1) Ambiance illumination as of Model Year 2010/YoM 10

MODEL 463.202/222/236/237/270/271/303/340/341 up to 31.5.12 with CODE (FR1) Ambiance illumination as of Model Year 2010/YoM 09

Illustrated on model 463.236

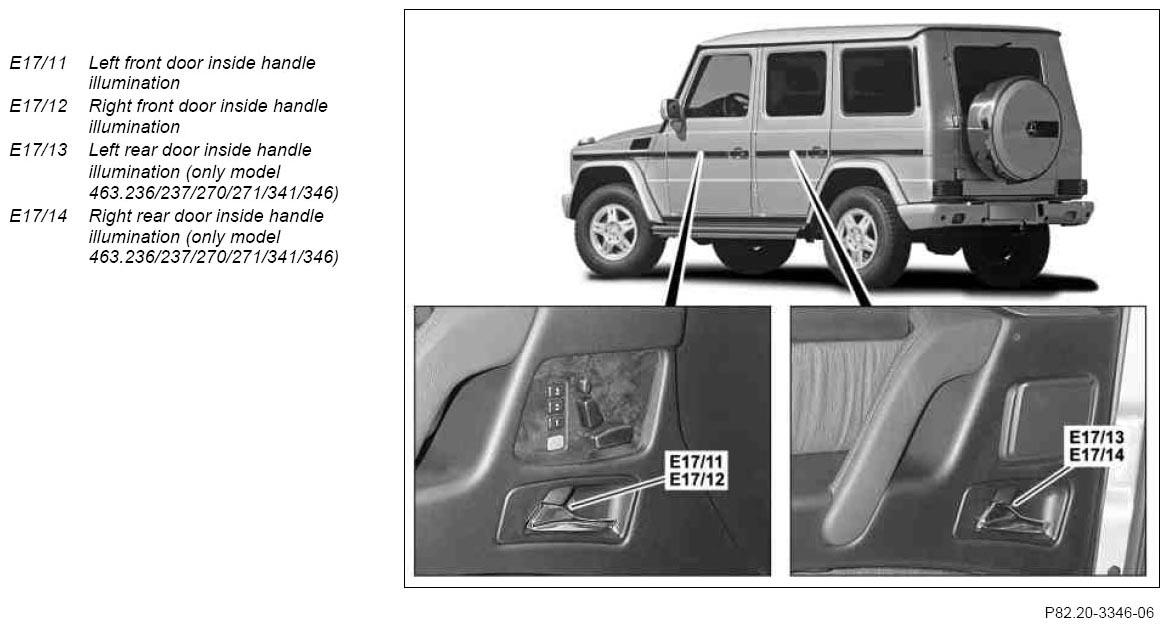

Fig 1: Identifying Door Handle Illumination Components

Courtesy of MERCEDES-BENZ USA

Location

The door inside handle illumination is integrated in the inner handle recess of the respective vehicle door.

Task

The door inside handle illumination is used to illuminate the inner handle recess of the vehicle doors in darkness.

The left front door inside handle illumination is actuated by the left front door control unit (N69/1) and the right front door inside handle illumination by the right front door control unit (N69/2).

Model 463.236/237/270/271/341/346:

The left rear door inside handle illumination is actuated by the left rear door control unit (N69/3) and the right rear door inside handle illumination by the right rear door control unit (N69/4).
