Block diagram for interior illumination (IBL) - GF82.20-P-0002-04G

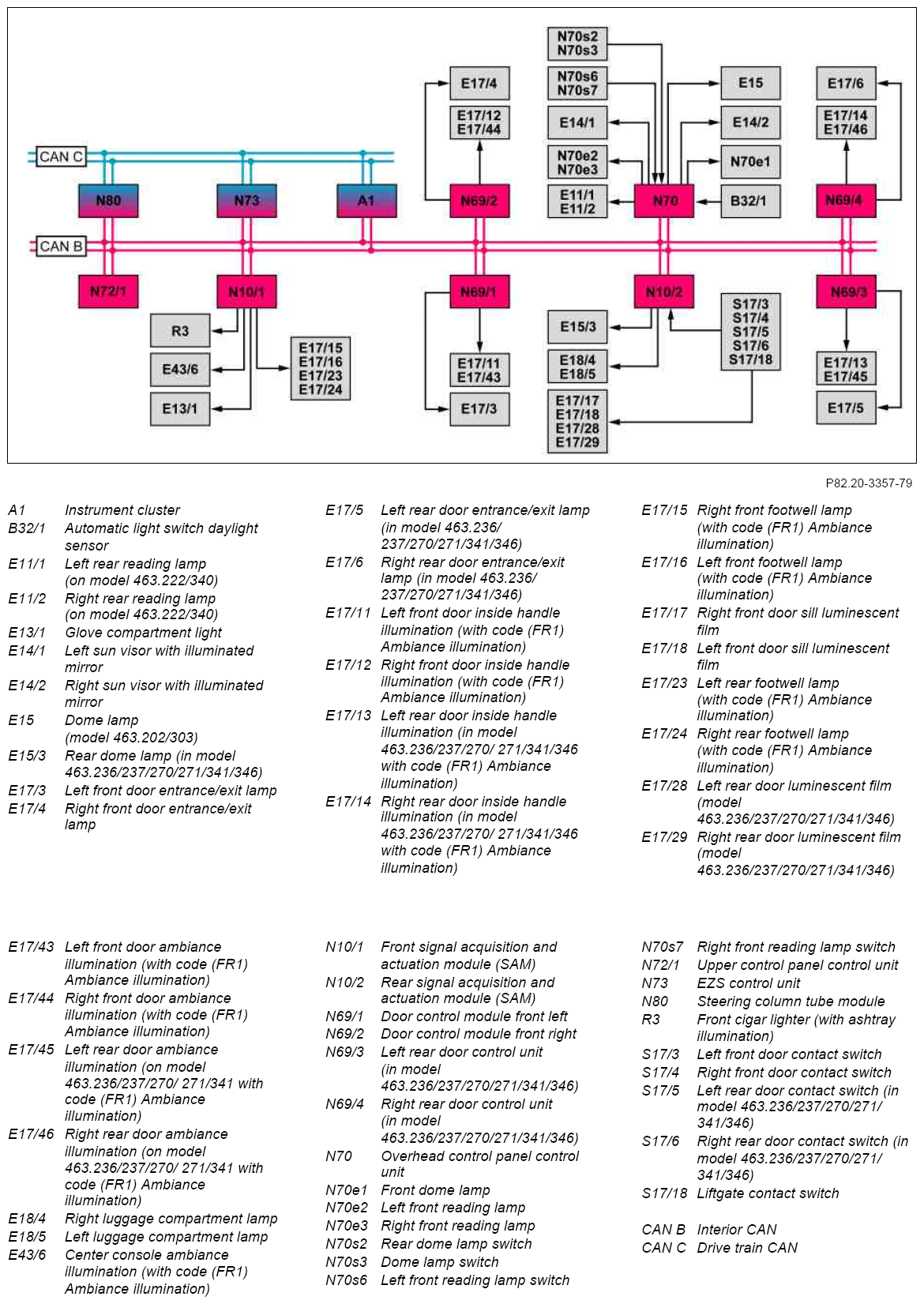

Fig 1: Interior Illumination Block Diagram

G07891350

Courtesy of MERCEDES-BENZ USA
