Ambiance illumination, component description - GF82.20-P-5160G

MODEL 463.306/336/346 up to 31.5.12 with CODE (FR1) Ambiance illumination as of Model Year 2010/YoM 10

MODEL 463.202/222/236/237/270/271/303/340/341 up to 31.5.12 with CODE (FR1) Ambiance illumination as of Model Year 2010/YoM 09

Illustrated on model 463.236

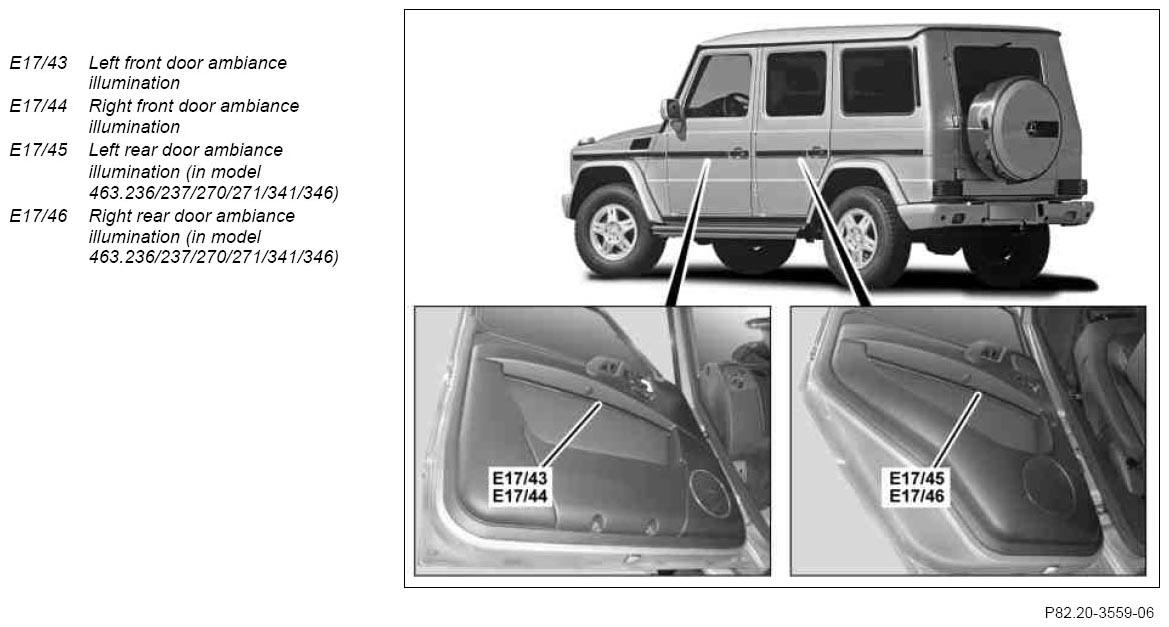

Fig 1: Locating Door Ambiance Illumination Components

Courtesy of MERCEDES-BENZ USA

Location

The door ambiance illumination is located in the panel of the respective vehicle door.

Illustrated on model 463.236

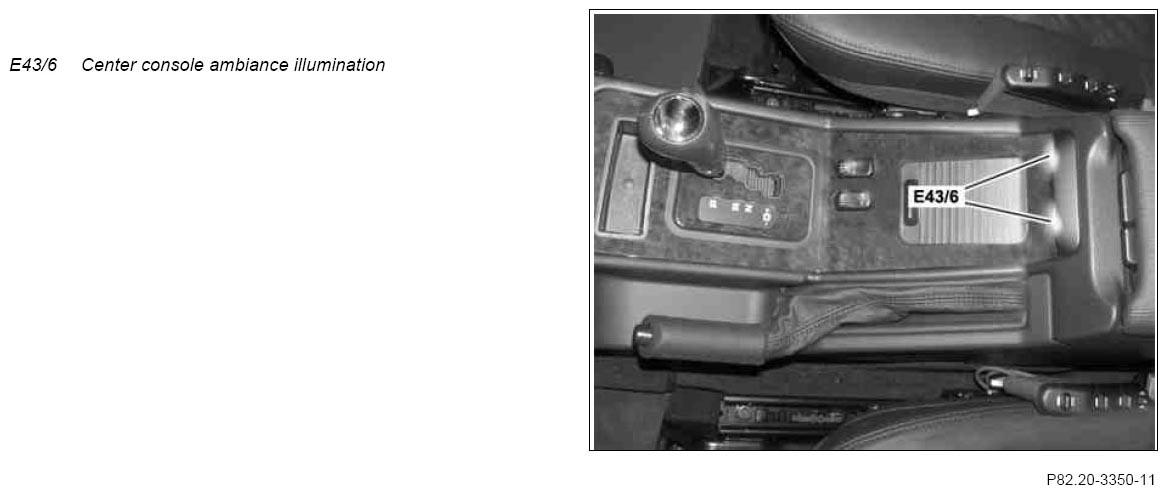

Fig 2: Locating Center Console Ambiance Illumination

Courtesy of MERCEDES-BENZ USA

Location

The center console ambiance illumination is integrated into the front paneling of the center armrest.

Task

The ambiance illumination is used for the need-based illumination of the vehicle interior in the area of the vehicle doors and the center console in darkness.

The door ambiance illumination is actuated as follows:

Left front door ambiance illumination by the left front door control unit (N69/1)
Right front door ambiance illumination by the right front door control unit (N69/2)

Model 463.236/237/270/271/341/346:

Left rear door ambiance illumination by the left rear door control unit (N69/3)
Right rear door ambiance illumination by the right rear door control unit (N69/4)

The center console ambiance illumination is actuated by the front signal acquisition and actuation module (SAM) (N10/1).
