MB-Info and breakdown assistance button group, component description - GF82.95-P-3211G
MODEL 463.249 up to 31.8.08 as of model year 2007 model year 07.5, YoM 07
MODEL 463.271 as of model year 2007 model year 07.5, YoM 07
MODEL 463.237 as of model year 2009/YoM 08

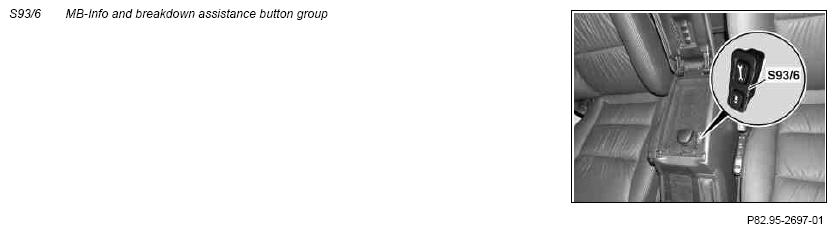

Location
The MB-Info and breakdown assistance button group is located in the stowage compartment under the armrest.
Task
The MB-Info and breakdown assistance button group is responsible for the following two functions:
- Manual triggering of an MB-Info call
- Manual triggering of breakdown assistance (Roadside Assistance)
In order to activate the emergency call system, the MB-Info and breakdown assistance button group must be operated for longer than t = 0.5 s with circuit 15 On, for longer than t = 2 s with circuit 15 Off.
System activation is indicated by a flashing light emitting diode in the MB-Info and breakdown assistance button group. When the MB-Info and breakdown assistance button group is operated, an SMS (SMS = Short Message Service) is automatically sent and at the same time a voice connection to the service center (Customer Assistance Center) is set up.
