Component description for voice control system (VCS [SBS]) control unit - GF82.70-P-4300G
MODEL 463.247 /248 /254 /270 /303 /340 /341 up to 31.8.08 with CODE (EL1) LINGUATRONIC voice control system as of Model Year 2007 Modelljahr 07.5, Anderungsjahr 07
MODEL 463.249 /271 up to 31.8.08 as of Model Year 2007 Modelljahr 07.5, Anderungsjahr 07
Location

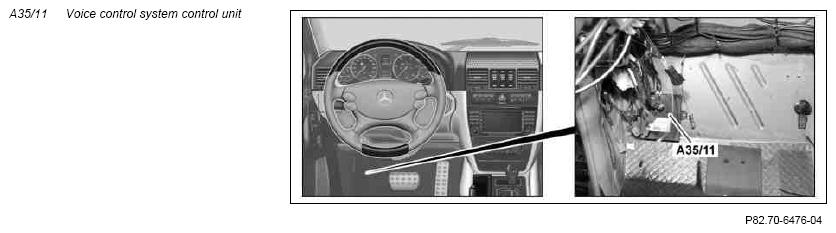

The voice control system control unit is located in the left driver footwell.
Task
The voice control system control unit helps to break up joined-up spoken commands. These commands can be entered by any speaker, without pre-training, and by a particular speaker (as names specified and programmed by the user). The voice control system control unit also comes with a voice output providing information for the user, e.g. input confirmation or help functions.
Noise reduction
If the voice control system is active, the microphone signals from the hands-free system microphone group (A67b1) can have the vehicle's driving noise removed using a noise reduction mode. This clearly improves the hands-free speech quality under high driving noise levels.
Echo compensation
Because some of the speech signals are fed back during voice output through the hands-free system microphone group, the person holding the call hears his own voice as an annoying echo. To help suppress this echo, the voice control system control unit is given a high-performance echo compensation, which acts in both transmission directions.
Discrete inputs
- Circuit 30
- Circuit 31
- Hands-free system microphone group
Discrete outputs
- Emergency call microphone in the hands-free system microphone group
MOST signals
The voice control system control unit uses the Media Oriented System Transport (MOST).
