Cockpit management and data system (COMAND), location of components - GF82.85-P-0003-01GB

Shown on model 463.236/237

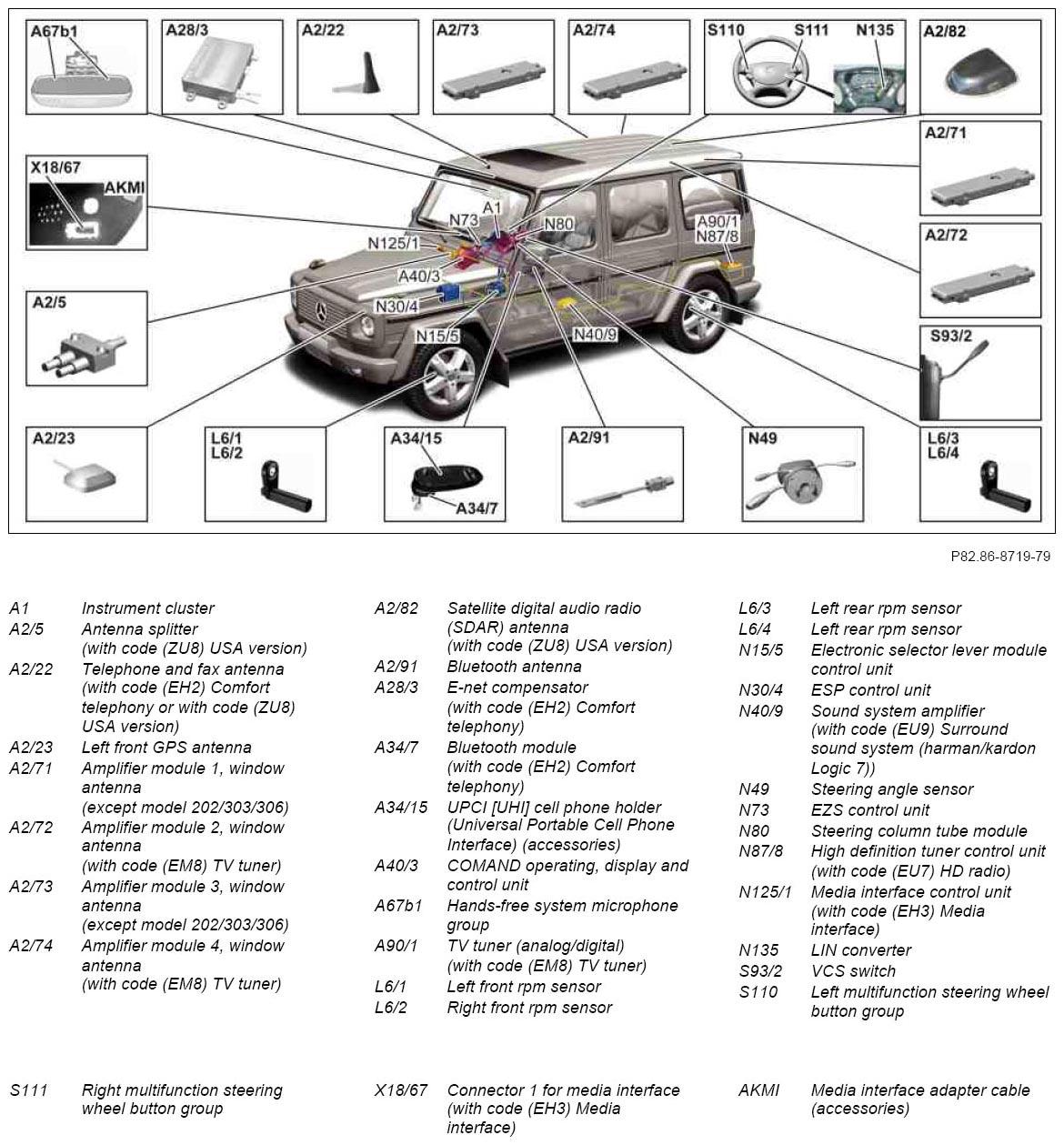

Fig 1: Locating Cockpit Management And Data System Components (1 Of 2)
G07891415Courtesy of MERCEDES-BENZ USA

Shown on model 463.236/237

Fig 2: Locating Cockpit Management And Data System Components (2 Of 2)
G07891416Courtesy of MERCEDES-BENZ USA
