Cockpit Management and Data System (COMAND) block diagram - GF82.85-P-0003-11G

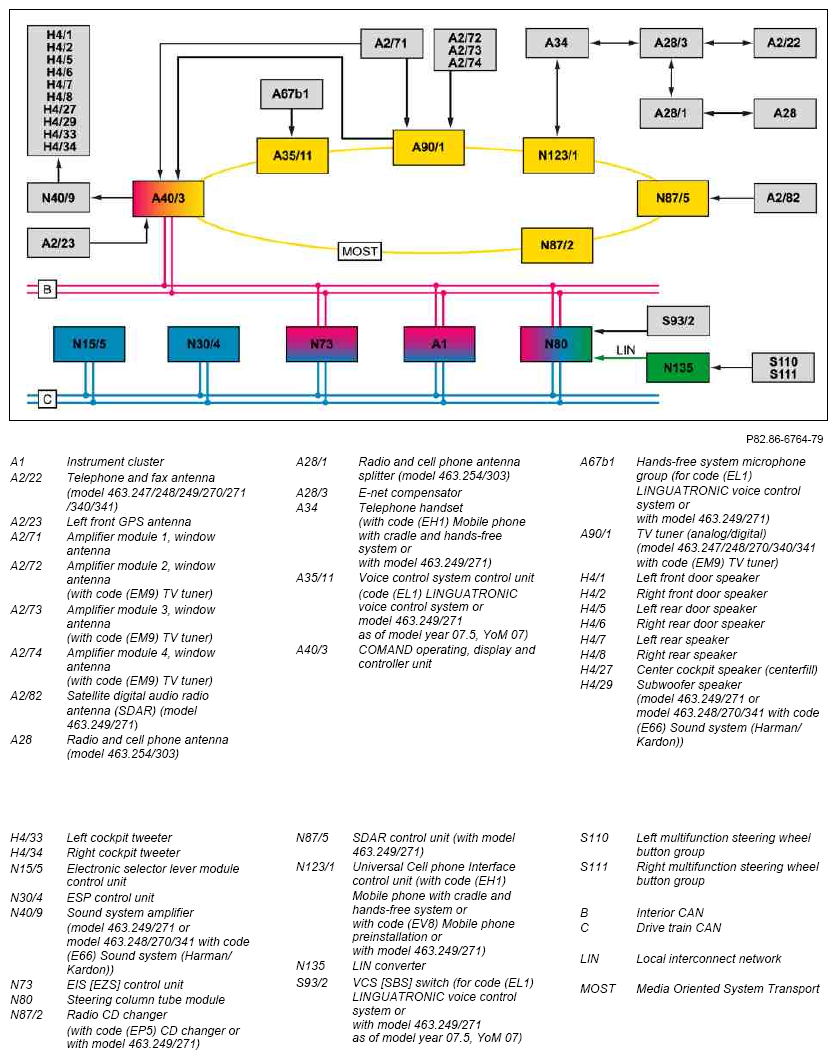

Fig 1: Cockpit Management And Data System (COMAND) Block Diagram

G07705808

Courtesy of MERCEDES-BENZ USA
