Traction system hydraulic unit, design - GF42.50-P-4000-03F

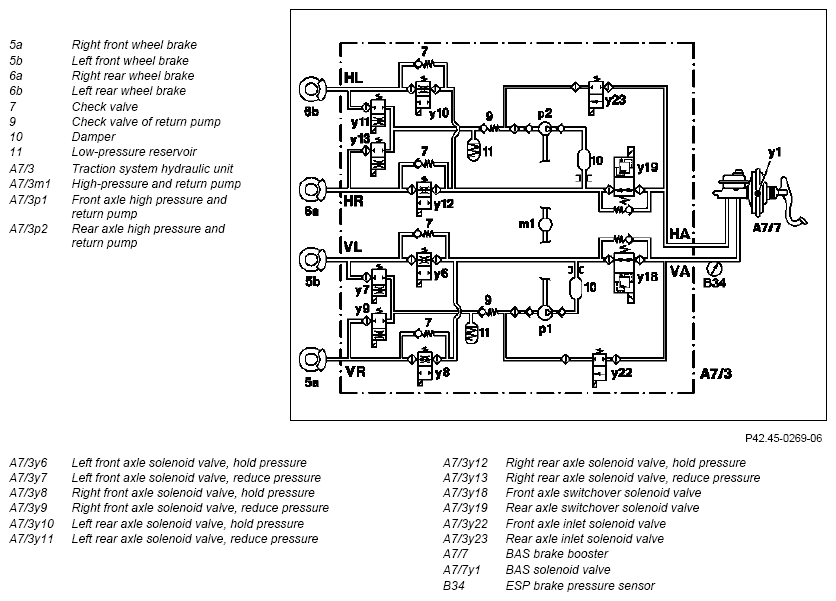

Schematic representation
The following assemblies are flange-mounted to the housing block of the traction system hydraulic unit (A7/3):
- Solenoid valve block with support for electrical coupling.
- Pump unit with electric high pressure and return pumps.
- Mount for installing the ESP brake pressure sensor (B34).
