Steering angle sensor, location/task - GF42.45-P-4602F
MODEL 463.243 /244 /246 /247 /249 /250 /254 ## as of 127357 as of 1.9.01, 463.270 /271, 463.309 /322 /323 /332 /333 ## as of 127357 as of 1.9.01 with CODE (BB3) Electronic stability program (ESP)
MODEL 463.248 ## as of 127357 as of 1.9.01 with CODE (BB3) Electronic stability program (ESP) except CODE (979) Special protected version

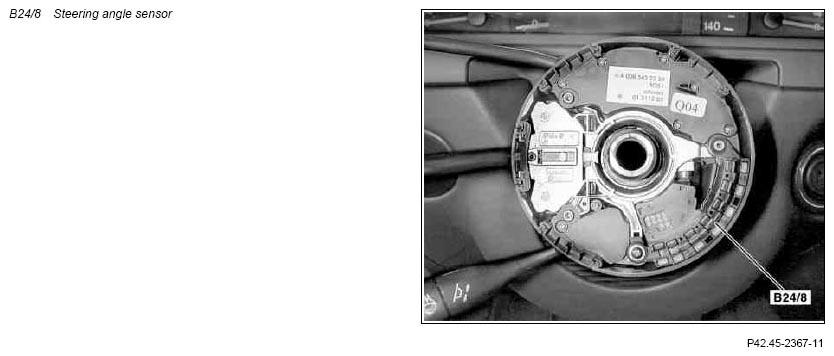

| Steering angle sensor, location | The steering angle sensor (B24/8) is located below the steering wheel. | ||
| Steering angle sensor, task | The steering angle sensor (B24/8) detects the position of the steering wheel and provides an electrical voltage signal that is proportional to the steering angle. |
