Location / task of ESP OFF switch - GF42.45-P-4950F

MODEL 463.243 /244 /246 /247 /249 /250 /254 ## as of 127357 as of 1.9.01, 463.270 /271, 463.309 /322 /323 /332 /333 ## as of 127357 as of 1.9.01 with CODE (BB3) Electronic stability program (ESP)

MODEL 463.248 ## as of 127357 as of 1.9.01 with CODE (BB3) Electronic stability program (ESP) except CODE (979) Special protected version

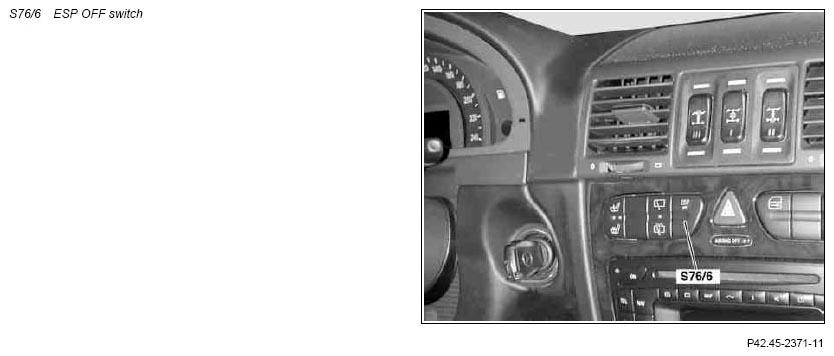

Fig 1: Identifying ESP OFF Switch

Courtesy of MERCEDES-BENZ USA

	ESP OFF switch, location	The ESP OFF switch (S76/6) is located in the panel above the center console.
	ESP OFF switch, task	Pressing the ESP OFF switch (S76/6) deactivates the ASR and deactivates the ESP control hen accelerating and coasting (the ESP control remains active while braking).
