ESP/BAS control unit, location/task - GF42.45-P-4501F
MODEL 463.243 /244 /246 /247 /249 /250 /254 ## as of 127357 as of 1.9.01, 463.270 /271, 463.309 /322 /323 /332 /333 ## as of 127357 as of 1.9.01 with CODE (BB3) Electronic Stability Program (ESP)
MODEL 463.248 ## as of 127357 as of 1.9.01 with CODE (BB3) Electronic Stability Program (ESP) except CODE (979) Special protection version
Shown on model 463 except model 463.303/340/341

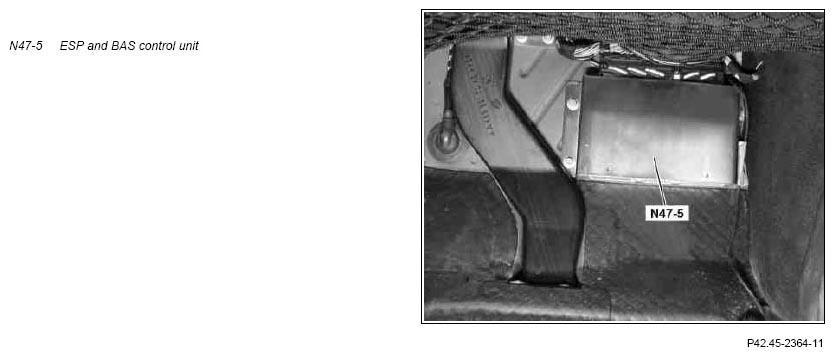

| ESP/BAS control unit, location | Except on models 463.303/340/341 the ESP and BAS control unit (N47-5) is located below the dashboard in the footwell on the passenger side. On models 463.303/340/341 it is located on the traction system hydraulic unit (A7/3). | ||
| ESP/BAS control unit, task | GF42.45-P-4501-02F |
