Brake light switch, component description - GF42.10-P-2010G
MODEL 463.306 /336 /346 as of model year 2011 /YoM 10
MODEL 463.202 /222 /236 /237 as of model year 2009 /YoM 08
MODEL 463.247 /248 /249 /254 up to 31.8.08 as of model year 2007
MODEL 463.270 /271 /303 /340 /341 as of model year 2007

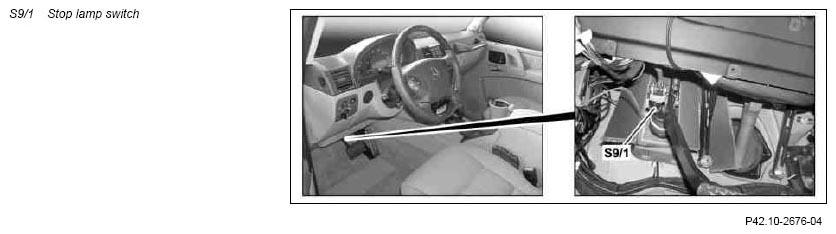

Location
The brake light switch is located on the brake pedal.
Tasks
The brake light switch detects the operation of the brake pedal. This signal is read in by the ESP control unit (N30/4) (without code (ZS6) Special protection version FB6 and without code (ZS7) Special protection version FB7) or from the ABS control unit (N47-7) (with code (ZS6) Special protection version FB6 or with code (ZS7) Special protection version FB7).
The detected operation of the brake pedal is redundantly sent over a direct line to the rear signal acquisition and actuation module (SAM) (N10/2).
