BAS release switch, location / task / function - GF42.31-P-4001F
MODEL 463.243 /244 /246 /247 /249 /250 /254 ## as of 127357 as of 1.9.01, 463.270 /271, 463.309 /322 /323 /332 /333 ## as of 127357 as of 1.9.01 with CODE (BB3) Electronic stability program (ESP)
MODEL 463.248 ## as of 127357 as of 1.9.01 with CODE (BB3) Electronic stability program (ESP) except CODE (979) Special protected version

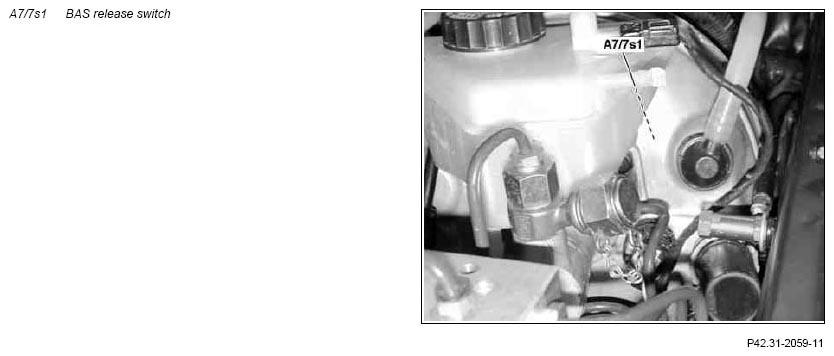

| BAS release switch, location | The BAS release switch (A7/7s1) is located inside the BAS brake booster (A7/7). | ||
| BAS release switch, task | The BAS release switch (A7/7s1) generates an electrical signal which indicates the end of the BAS brake application. | ||
| BAS release switch, function | The BAS release switch (A7/7s1) detects the position of the BAS solenoid valve (A7/7y1) and generates an electrical signal when changing from its activated to its not activated status (brake released). |
