BAS brake booster, location/task - GF42.31-P-4010F
MODEL 463.243 /244 /246 /247 /249 /250 /254 ## as of 127357 as of 1.9.01, 463.270 /271, 463.309 /322 /323 /332 /333 ## as of 127357 as of 1.9.01 with CODE (BB3) Electronic stability program (ESP)
MODEL 463.248 ## as of 127357 as of 1.9.01 with CODE (BB3) Electronic stability program (ESP) except CODE (979) Special protected version

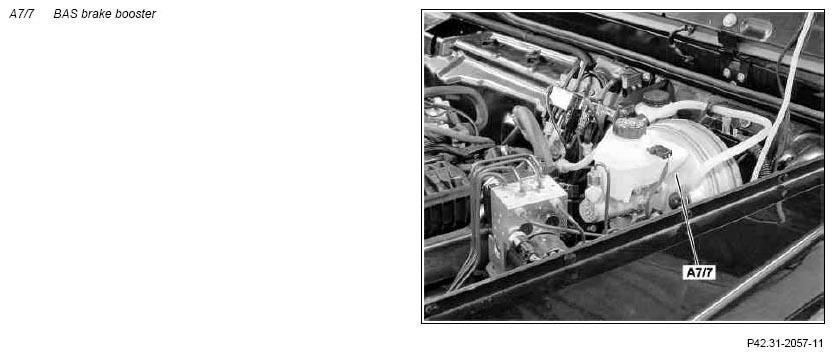

| BAS brake booster, location | The BAS brake booster (A7/7) is located on the left-hand side of the engine compartment. | ||
| BAS brake booster, task | The BAS brake booster (A7/7) boosts the force for actuating the master brake cylinder. Without BAS intervention, the pedal force generated by the driver is boosted proportionally and with BAS intervention the force is boosted to the maximum level. |
