Heat left/right outside rearview mirrors function - GF88.79-P-2000G
MODEL 463.306 /336 /346 as of model year 2011 /YoM 10
MODEL 463.202 /222 /236 /237 as of model year 2009 /YoM 08
MODEL 463.247 /248 /249 /254 up to 31.8.08 as of model year 2007
MODEL 463.270 /271 /303 /340 /341 as of model year 2007
Function requirements
- Circuit 61 ON
- No active actuation of the power window
- No overvoltage/undervoltage

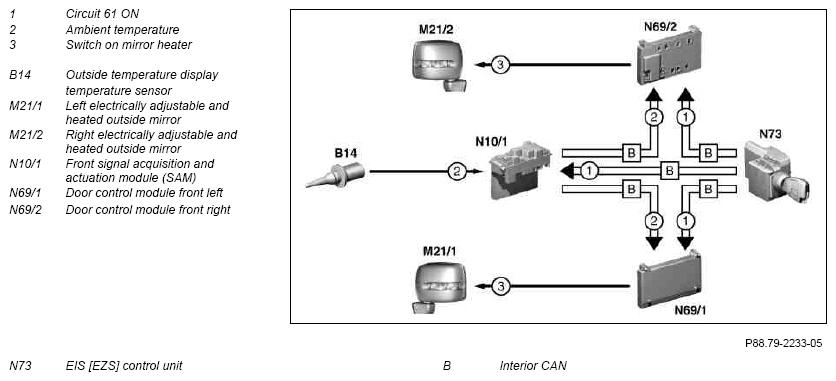

Function sequence for heated outside mirror
The mirror heater is switched on and off depending on the outdoor temperature measured with the outdoor temperature indicator temperature sensor.
The front SAM reads in the outside temperature and transits it to the left front door control unit and right front door control unit via the interior CAN.
At an outside temperature of T < 15°C, the heated outside mirror is switched on and switched off at T > 19°C. If the temperature value received via the interior CAN is implausible, the heated outside mirror is always switched on at the specified function requirements.
| Component description for the outside temperature indicator temperature sensor | B14 | GF83.57-P-4002G | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070G | |
| Component description for left front door control unit | N69/1 | GF72.29-P-4141G | |
| Component description for right front door control unit | N69/2 | GF72.29-P-4142G | |
| Electronic ignition/starter switch control unit (EZS), component description | N73 | GF80.57-P-6000G |
