Electrically adjustable outside mirrors, location of components - GF88.79-P-0005-01G

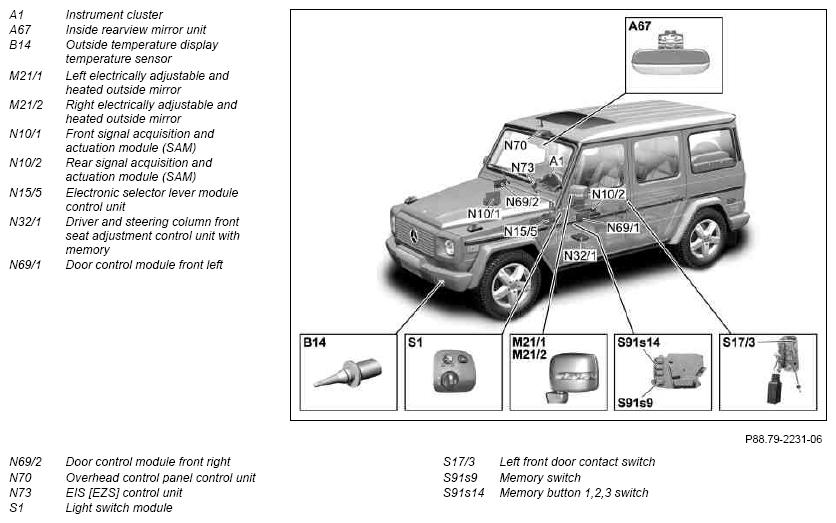

Fig 1: Locating Electrically Adjustable Outside Mirrors Components
G07711419Courtesy of MERCEDES-BENZ USA
