Electrically adjustable outside mirror, block diagram - GF88.79-P-0005-02G

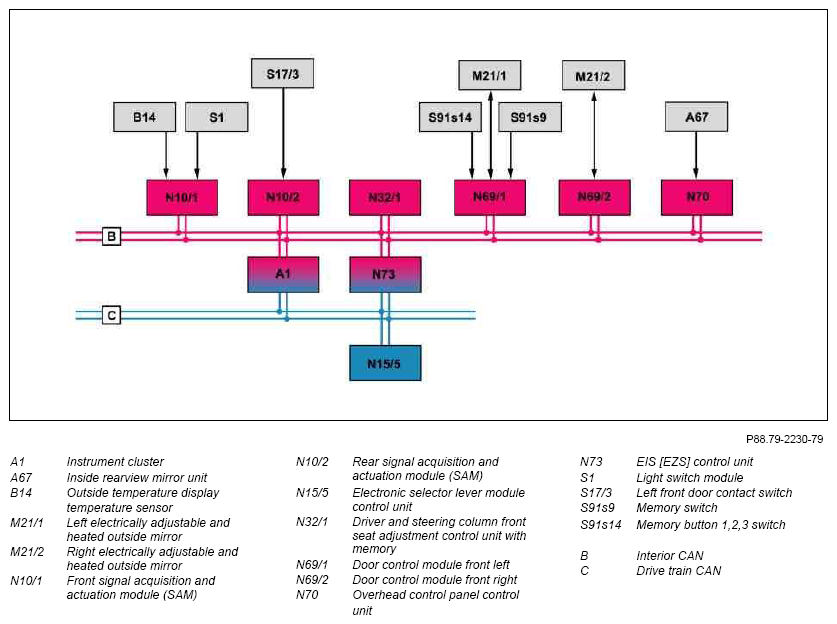

Fig 1: Electrically Adjustable Outside Mirror Block Diagram

G07711420

Courtesy of MERCEDES-BENZ USA
