Electric steering lock control unit, component description - GF80.57-P-6020G
MODEL 463.306 /336 /346 as of model year 2011 /YoM 10
MODEL 463.202 /222 /236 /237 as of model year 2009 /YoM 08
MODEL 463.247 /248 /249 /254 up to 31.8.08 as of model year 2007
MODEL 463.270 /271 /303 /340 /341 as of model year 2007
Location

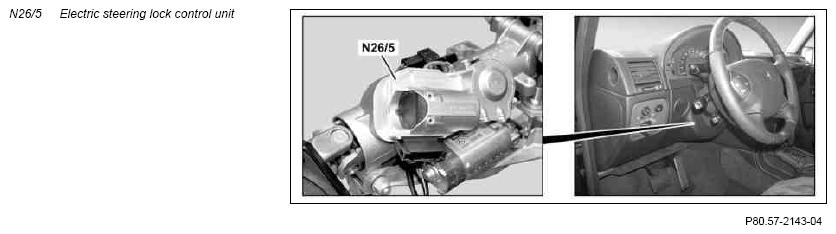

The electric steering lock control unit is located the steering column
Task
The electric steering lock control unit processes information from the EIS control unit (N73) and is connected with it via a bi-directional, serial data line
After the unlocking operation, the power to the locking components is switched off to avoid unintentional locking
Purpose, electronic stage
- Calculation of Hash value
- If the Hash value is incorrect and the unlocking position is not reached or not recognized, an error message is transmitted to the EIS control unit.
- Position monitoring of locking bolt via 2 Hall sensors
- Switching on integrated motor via alternating relay for locking and unlocking locking bolt
Purpose, mechanical stage
- Arresting steering column with locking bolt
Discrete inputs
- Circuit 30
- Tml. 31
- Serial data line to EIS control unit
Discrete outputs
- Serial data line to EIS control unit
