Volume/tone adjustments, function - GF82.60-P-2003GA

MODEL 463.306 /336 /346 up to 31.5.12 with CODE (EU1) COMAND APS as of Model Year 2011 /YoM 10

MODEL 463.202 /222 /236 /237 /270 /271 /303 /340 /341 up to 31.5.12 with CODE (EU1) COMAND APS as of Model Year 2009 /YoM 08

Shown on code (EU9) Surround sound system (harman/kardon Logic 7)

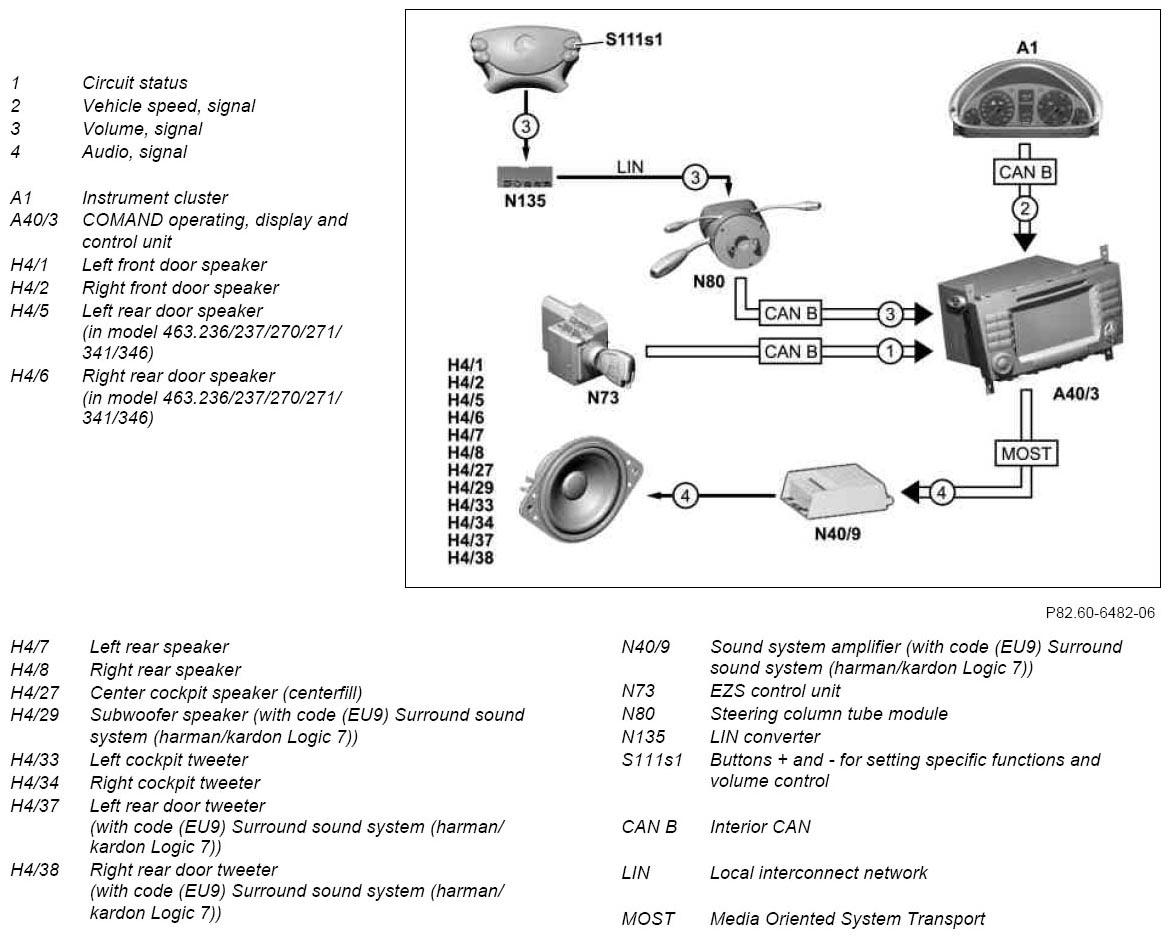

Fig 1: Volume/Tone Adjustments Function Diagram
G07891384Courtesy of MERCEDES-BENZ USA

Function requirements, general

Volume/tone adjustments, general

All volume and tone settings can be made via the COMAND operating, display and controller unit. This is performed either manually by the user or automatically by the speed-dependent volume control (SDV [GAL]).

The manual volume/tone settings can be made using the following components:

The volume and tone setting function is composed of the following subfunctions:

IMPORTANT In addition to the general tone settings such as bass, treble, balance and fader, the COMAND operating, display and controller unit also has the "Logic 7" surround sound function on vehicles with code (EU9) Surround sound system (harman/kardon Logic 7).

IMPORTANT As of 1.9.09: With the audio source "AUX" (via media interface adapter cable (accessories) (with code (EH3) Media interface) or via the electrical connector of AUX connection (X39/45)), the selections "Standard" and "Boost" are possible in the "Volume" menu. The input level can be increased by selecting "Boost".

General volume setting function sequence on right multifunction steering wheel button group

By pressing the + and - button, for setting specific functions and volume control, the volume for the desired audio function to be increased or decreased.

The control signals are routed to the COMAND operating, display and controller unit via the following route:

Function sequence for general volume setting and general/ expanded tone settings via the control buttons and the rotary actuator of the COMAND operating, display and controller unit

The COMAND operating, display and controller unit allows the volume and tone settings (bass, treble, balance, fader and tone options) to be set manually for each audio source with the rotary actuator. The required tone settings can be made using the "Tone" menu. They can be set separately for each function (e.g. CD, radio reception, traffic announcements). The control signals are read in and evaluated within the COMAND operating, display and controller unit. The desired settings are transferred via MOST to the sound system amplifier on vehicles with code (EU9) Surround sound system (harman/kardon Logic 7), and vehicles with code (EU9) Surround sound system (harman/kardon Logic 7) also have the "Logic 7" surround sound function.

If the tone emphasis is changed (balance, fader) the volume relationship between the individual speakers changes relative to each other.

IMPORTANT On vehicles without code (EU9) Surround sound system (harman/kardon Logic 7), the selected settings are processed and amplified internally and output at the speaker system.

IMPORTANT The current tone settings are shown on the display of the COMAND operating, display and controller unit. The volume setting can be carried out separately for each audio source. Predefined settings can be selected and reset directly to the manufacturer default setting via the system settings.

Function sequence for speed-dependent volume control

The speed-dependent volume control can be used to adapt the volume to the noise level in the vehicle interior. In this case, the vehicle speed signal is used as the reference value. This procedure will run automatically. After evaluating the relationship indicator, the audio output is matched to the noise level in the vehicle interior.

Depending on the vehicle speed signal, the COMAND operating, display and controller unit raises or lowers the output level of the audio signals.

The vehicle speed signal travels to the COMAND operating, display and controller unit via the following route:

The audio signals are output on vehicles with code (EU9) Surround sound system (harman/kardon Logic 7) by the COMAND operating, display and controller unit via MOST to the sound system amplifier and from there via direct lines to the following speakers:

On vehicles without code (EU9) Surround sound system (harman/ kardon Logic 7), the audio signals are output by the COMAND operating, display and controller unit via direct lines to the following speakers:

  Component description for instrument cluster A1 GF54.30-P-6000G
  Component description for COMAND operating, display and controller unit A40/3
Without code (ZJ1) Japan version		 GF82.85-P-3134GB
With code (ZJ1) Japan version GF82.85-P-3134GAJ
  Component description for sound system amplifier N40/9
Model 463.236/237/270/ 271/341/346 with code (EU9) Surround sound system (harman/kardon Logic 7)		 GF82.62-P-6003G
  Electronic ignition/starter switch control unit (EZS), component description N73 GF80.57-P-6000G
  Component description for steering column tube module N80 GF54.21-P-6050G
  LIN converter, component description N135 GF82.90-P-4023G
  Multifunction steering wheel button group, component description S110, S111 GF82.90-P-4001G
