Sound amplifier, component description - GF82.62-P-3009G

MODEL 463.248 /270 /341 up to 31.8.08 with CODE (E66) Sound system (Harman/Kardon) as of model year 2007 model year 07.5, YoM 07

MODEL 463.249 /271 up to 31.8.08 as of model year 2007

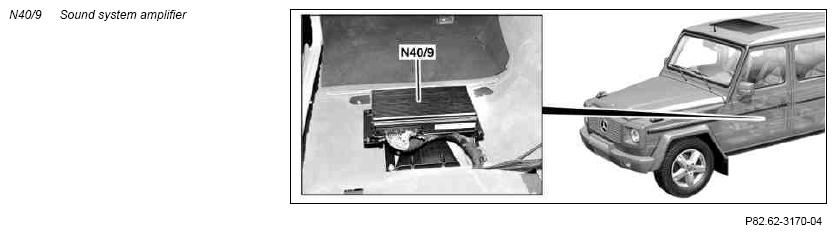

Fig 1: Locating Sound System Amplifier

Courtesy of MERCEDES-BENZ USA

Location

The sound system amplifier is located under the driver seat.

Task

The sound system amplifier manages all the audio sources integrated into the vehicle and processes their audio signals.

The sound system amplifier sends the audio signals to the following speakers:

Speaker Left front door (H4/1)
Speaker Right front door (H4/2)
Left rear door speaker (H4/5)
Right rear door speaker (H4/6)
Left rear speaker (H4/7)
Right rear speaker (H4/8)
Center cockpit speaker (centerfill) (H4/27)
Subwoofer speaker (H4/29)
Left cockpit tweeter (H4/33)
Right cockpit tweeter (H4/34)

Signal inputs and outputs

Discrete inputs

Discrete outputs
