Mobile phone system, location of components - GF82.70-P-0007-01GB

Shown on model 463.236

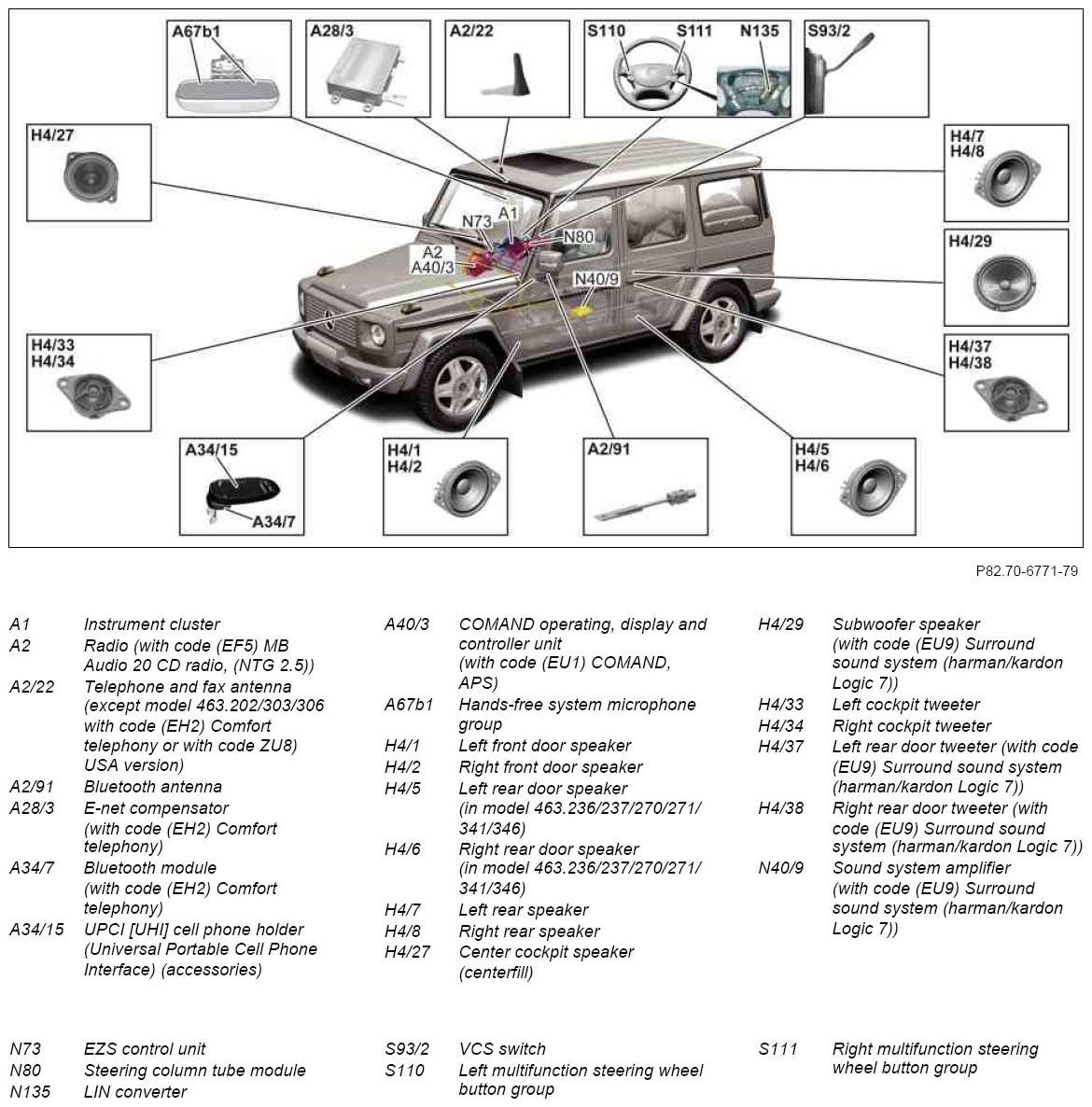

Fig 1: Locating Mobile Phone System Components

G07891401

Courtesy of MERCEDES-BENZ USA
