CD player with changer component description - GF82.64-P-3112G
MODEL 463.247 /248 /254 /270 /303 /340 /341 up to 31.8.08 with CODE (EP5) CD changer as of Model Year 2007 Modelljahr 07.5, Anderungsjahr 07
MODEL 463.249 /271 up to 31.8.08 as of Model Year 2007
Location

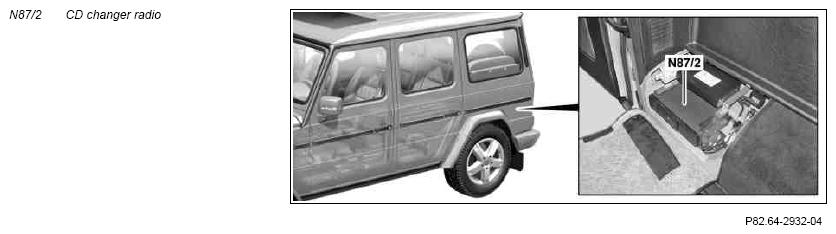

The radio CD changer is located at the rear left in the luggage compartment on the control unit holder.
Task
The radio CD changer can transmit digital audio signals in stereo and Dolby Surround. Music CDs with the corresponding file format (Red Book audio CD standard) are used. The CD changer can also play CDs with MP3 files.
Depending upon the vehicle equipment, the radio CD changer is controlled through the Media Oriented System Transport (MOST) by the following components:
- Radio (A2) (model 463.303/340/341 without code (ET4) COMAND operating and display system)
- COMAND operating, display and controller unit (A40/3) (model 463.303/340/341 with code (ET4) COMAND operating and display system or model 463.247/248/249/254/270/271)
