Reversing camera power supply module, component description - GF54.65-P-5041G
MODEL 463.306/336/346 with CODE (FR8) Backup camera as of Model Year 2011/YoM 10
MODEL 463.222/236/237 with CODE (FR8) Backup camera as of Model Year 2009/modification year 08
MODEL 463.247/248/249 up to 31.8.08 with CODE (FR8) Backup camera as of Model Year 2007 model year 07.5, modification year 07
MODEL 463.270/271/340/341 with CODE (FR8) Backup camera as of Model Year 2007 model year 07.5, modification year 07

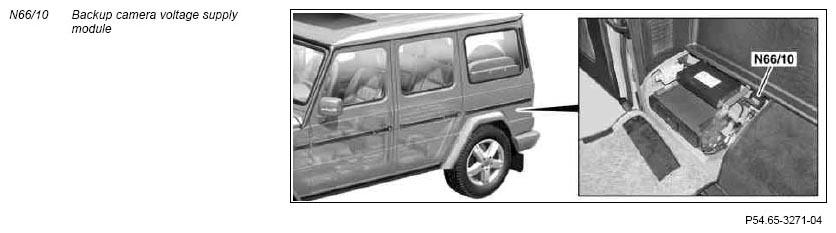

Location
The backup camera power supply module is installed in the left rear of the load compartment.
Tasks
- Power supply for the reversing camera (B84/3)
- To pass on the video picture of the backup camera to the COMMAND operating, display and controller unit (A40/3)
If the TV tuner (analog/digital) (A90/1) (with code (EM9) TV tuner or code (EM8) TV tuner) is fitted, then the reversing camera power supply module first leads the camera pictures to the TV tuner via a coaxial line. This then passes on the camera pictures to the COMMAND operating, display and controller unit via a further coaxial line.
