Lift/jack up vehicle - AR00.60-P-1000T

MODEL 211

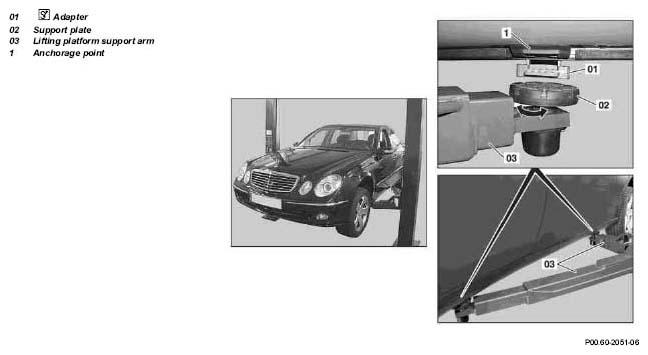

Fig 1: Identifying Vehicle Lifting Components

	Lift/lower vehicle
	Risk of death  cased by vehicle slipping or toppling off of the lifting platform.	Align vehicle between the columns of the hydraulic hoist and position the four support plates below the hoist support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
1.1	Raise the vehicle with the lifting platform and secure it on the lifting platform	When removing major assemblies (e.g. engine, transmission, axles)	AR00.60-P-0100T
		The vehicle must be secured to the lifting platform to prevent it from falling off during removal of major assemblies.
		When the vehicle is secured to the lifting platform, the underfloor paneling can be removed.
1.2	Attach the adapters (01) into the lift support points (1) on the side skirts	When removing the underfloor paneling
			Fig 2
2.1	Adjust the support plates (02) on the lifting platform support arms (03) to the vehicle height	When the vehicle is not secured
		Rotate the support plates (02) until they contact the adapters (01) or the lift support points (1) on the side skirts.
3.1	Raise vehicle with lifting platform	When the vehicle is not secured
		Two-post lift	*WE58.40-Z-1001-05A
4	Follow the sequence in reverse order when lowering the vehicle
	Jack up/lower the vehicle
5	Raise the vehicle with an inspection pit lift or a floor jack	Inspection pit lift	*WE58.40-Z-1002-05A
		Floor jack	*WE58.40-Z-1007-05A
6	Secure the vehicle against tipping and falling	Place jack stands beneath the lift support points (1).
		Jack stand	*WE58.40-Z-1008-05A
7	Follow the sequence in reverse order when lowering the vehicle

Fig 2: Identifying Adapter Kit (203 589 02 31 00)

WORKSHOP EQUIPMENT

WE58.40-Z-1001-05A	Two-post lifting platform
WE58.40-Z-1002-05A	Pit lift
WE58.40-Z-1007-05A	Floor jack
WE58.40-Z-1008-05A	Jack stand
