Tire pressure monitor control unit, location / task / design - GF40.15-P-3001T
MODEL 211.0 up to 31.5.05 with CODE (475) Tire pressure monitor except CODE (494) USA version except CODE (498) Japan version
MODEL 211.0 up to 30.6.05 with CODE (475) Tire pressure monitor with CODE (494) USA version with CODE (498) Japan version

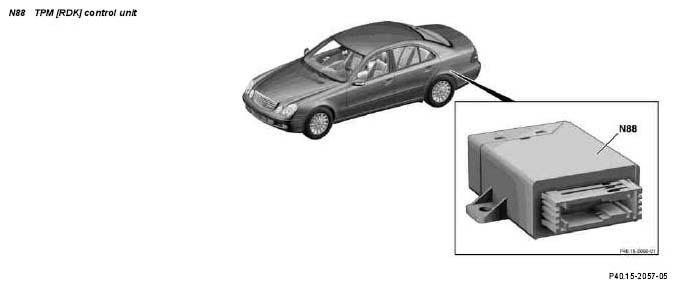

| Tire pressure monitor control unit, location | The TPM [RDK] control unit (N88) is located in the left of the luggage compartment, behind the rear SAM control unit with fuse and relay module (N10/2) and above the trailer connection unit [AAG] control unit (N28/1) | ||
| Tire pressure monitor control unit, task | GF40.15-P-3000-03T | ||
| Tire pressure monitor control unit, design | The TPM control unit (N88) consists of a HF receiver, a control unit circuit board with microprocessor and an interface for the data bus CAN. |
