Arrangement and assignment of the wiring and plug connectors, trunk (left) - GF00.19-U-1000-06DA

MODEL 211

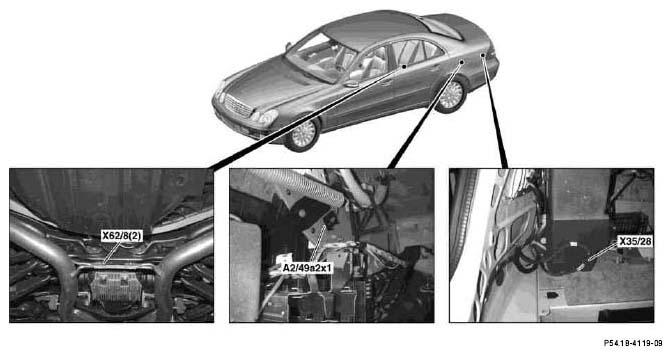

Fig 1: Arrangement And Assignment Of Wiring And Plug Connectors, Trunk (Left) (1 Of 2)
G04982388

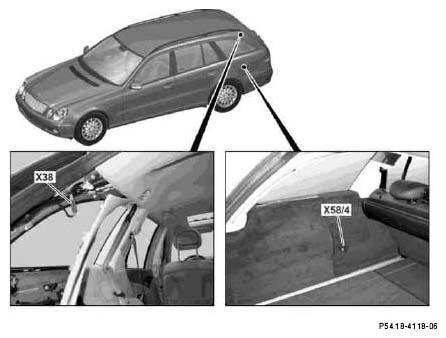

Fig 2: Arrangement And Assignment Of Wiring And Plug Connectors, Trunk (Left) (2 Of 2)
G04982389
Item Designation Cable colors Cable colors Notes
A2/49a2x1 GPS antenna connector WH PLUG   SOCKET Sedan
  as of 09/04 TR PLUG S SOCKET Sedan
A2/49a2x1 GPS antenna connector WH PLUG 1 SOCKET Sedan
  up to 08/04 TR PLUG 2 SOCKET Sedan
X35/28 PTS connector, rear bumper YEWH PLUG 1 SOCKET YEWH
    YEVT PLUG 2 SOCKET YEVT
    YERD PLUG 3 SOCKET YERD
    BKYE PLUG 4 SOCKET BKYE
    BNBU PLUG 5 SOCKET BNBU
    WHYE PLUG 6 SOCKET WHYE
X38 Loudspeaker intermediate connector PK PLUG 1 SOCKET PK Sound-System, Wagon
    BNPK PLUG 2 SOCKET BNPK Sound-System, Wagon
    GY PLUG 3 SOCKET GY Sound-System, Wagon
    BNGY PLUG 4 SOCKET BNGY Sound-System, Wagon
X58/4 Cargo area socket   1 SOCKET BNWH
      2
      3 SOCKET BKGY
X62/8 (2) Rear axle multiple circuit junction connector YEGN PLUG 1 SOCKET YEGN
    BUYE PLUG 2 SOCKET BUYE
    BUGN PLUG 3 SOCKET BUGN
    YEGY PLUG 4 SOCKET YEGY
    BURD PLUG 5 SOCKET BURD
    BUBK PLUG 6 SOCKET BUBK
