Arrangement and assignment of the wiring and plug connectors, interior compartment (left) - GF00.19-U-1000-04DA

MODEL 211

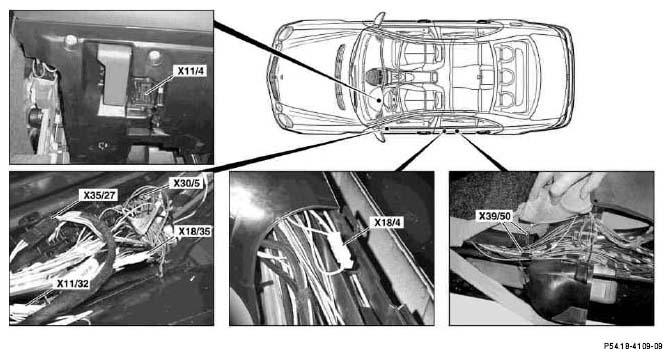

Fig 1: Arrangement And Assignment Of Wiring And Plug Connectors, Interior Compartment (Left) (1 Of 7)
G04982378

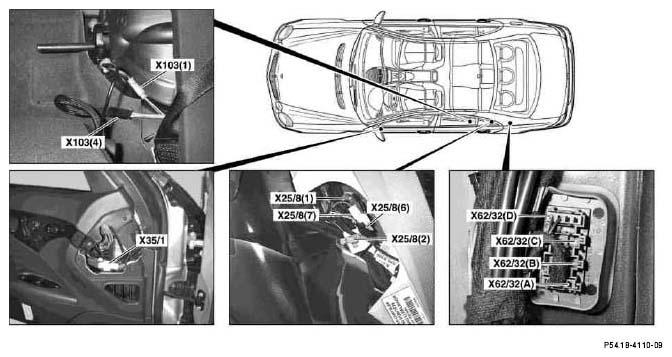

Fig 2: Arrangement And Assignment Of Wiring And Plug Connectors, Interior Compartment (Left) (2 Of 7)
G04982379

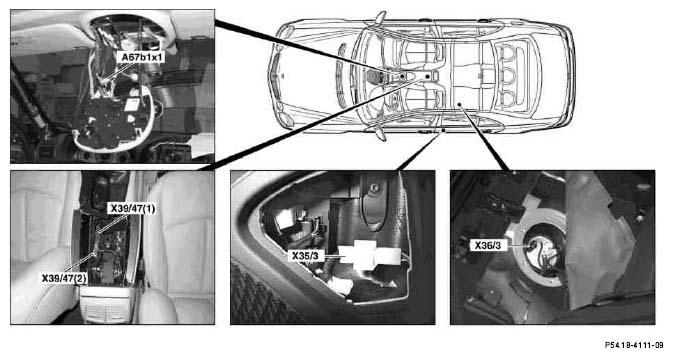

Fig 3: Arrangement And Assignment Of Wiring And Plug Connectors, Interior Compartment (Left) (3 Of 7)
G04982380

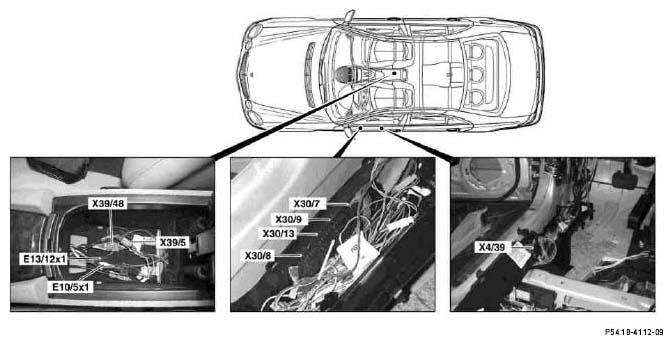

Fig 4: Arrangement And Assignment Of Wiring And Plug Connectors, Interior Compartment (Left) (4 Of 7)
G04982381

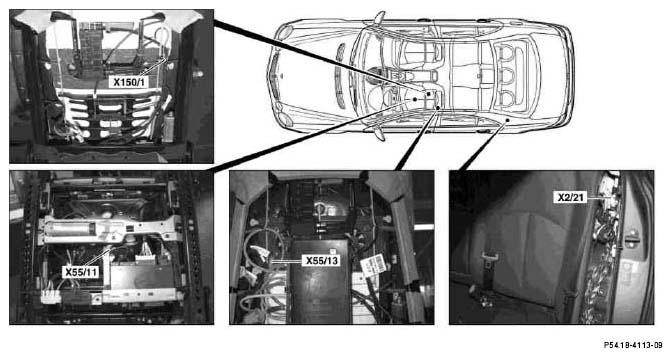

Fig 5: Arrangement And Assignment Of Wiring And Plug Connectors, Interior Compartment (Left) (5 Of 7)
G04982382

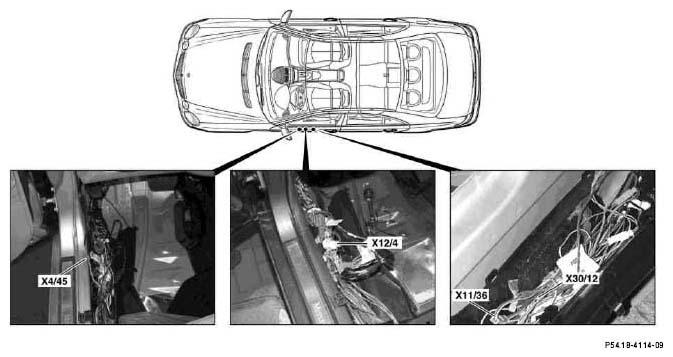

Fig 6: Arrangement And Assignment Of Wiring And Plug Connectors, Interior Compartment (Left) (6 Of 7)
G04982383

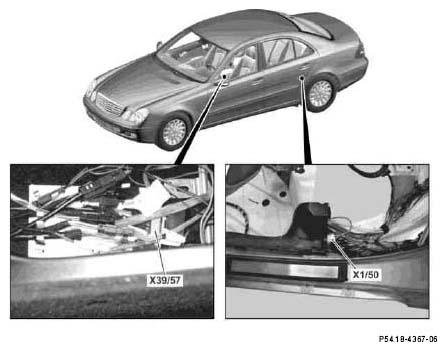

Fig 7: Arrangement And Assignment Of Wiring And Plug Connectors, Interior Compartment (Left) (7 Of 7)
G04982384
Item Designation Cable colors Cable colors Notes
A67b1x1 Hands-free system microphone group connector
  UP TO 05/06 PLUG 1 SOCKET TR
    PLUG 2 SOCKET GN
    PLUG 3 SOCKET GY
    PLUG 4 SOCKET OG
    PLUG 5 SOCKET VT
    PLUG 6 SOCKET PK
  AS OF 06/06 PLUG 1 SOCKET TR
    PLUG 2 SOCKET GN
    PLUG 3
    PLUG 4 SOCKET OG
    PLUG 5
    PLUG 6 SOCKET PK
E10/5x1 Rear air outlet illumination connector BN PLUG 1 SOCKET BN
    WH PLUG 2 SOCKET GYBU
E13/12x1 Right front stowage compartment illumination connector
  UP TO 05/04 BK PLUG 1 SOCKET BN
    BK PLUG
    RD PLUG 2 SOCKET BUGY
    RD PLUG
X1/50 Tire pressure monitor central antenna separation point RD PLUG 1 SOCKET RD
    BNWH PLUG 2 SOCKET BNWH
    GY PLUG 5 SOCKET GY
    GYWH PLUG 6 SOCKET GYWH
X2/21 Radio antenna module connector
  AS OF 06/06, Sedan WH PLUG   SOCKET WH
    TR PLUG S SOCKET TR
X4/39 Steering column adjustment connector BU PLUG 1 SOCKET BU
    YEBK PLUG 2 SOCKET YEBK
    GYGN PLUG 3 SOCKET GYGN
    GYBK PLUG 4 SOCKET GYBK
    PLUG GYYE 5 SOCKET GYYE
    YEBU PLUG 6 SOCKET YEBU
X4/45 Steering wheel heater connector
  AS OF 06/04 PKBU PLUG 2 SOCKET PKBU
X11/4 Data link connector   1
      2
      3 SOCKET GNGY
      4 SOCKET BN
      5 SOCKET BNBK
      6 SOCKET GNWH UP TO 05/06
      6 SOCKET WH AS OF 06/06
      7 SOCKET BUYE
      8 SOCKET BKGY
      9 SOCKET YERD
      10
      11 HONG KONG ONLY GYGN
      12
      13
      14 SOCKET GN
      15 SOCKET GNYE UP TO 05/04
      16 SOCKET RDYE
X11/32 Transmission diagnosis connector   1
    GYGN PLUG 2 SOCKET GYGN
X11/36 DTR diagnosis connector RD PLUG 1 SOCKET RD UP TO 05/04
    RDGN PLUG 1 SOCKET RDGN AS OF 06/04
    GNYE PLUG 2 SOCKET GNYE UP TO 05/04
X12/4 Terminal block (circuit 15 fused)
  AS OF 06/06 GNBK PLUG 1.1 SOCKET GNBK
    GNBK PLUG
    BK PLUG 1.2 SOCKET BK
    BKWH PLUG 1.3 SOCKET BKWH
X18/4 Interior/Sound System connector BU PLUG 1 SOCKET BU
X18/35 Cockpit wiring harness and FFS [RBA] connector
  Valid for Radio BNWH PLUG 1 SOCKET BNWH
    BU PLUG 2 SOCKET BU
X25/8 (1) Overhead control panel and FFS [RBA] connector
  UP TO 05/06 PLUG 1 SOCKET
    GN PLUG 2 SOCKET GN
    GY PLUG 3 SOCKET GY
    OG PLUG 4 SOCKET OG
    VT PLUG 5 SOCKET VT
    PK PLUG 6 SOCKET PK
  AS OF 06/06 PLUG 1 SOCKET
    GN PLUG 2 SOCKET GN
      3
    OG PLUG 4 SOCKET OG
      5
    PK PLUG 6 SOCKET PK
X25/8 (2) Overhead control panel and FFS [RBA] connector BKPK PLUG 1 SOCKET BKPK
    GNWH PLUG 2 SOCKET GNWH
    VT PLUG 3 SOCKET VT
X25/8 (6) Overhead control panel and FFS [RBA] connector PLUG 1 SOCKET BN
      2
    GN PLUG 3 SOCKET BN
    WH PLUG 4 SOCKET BNRD
X25/8 (7) Overhead control panel and FFS [RBA] connector BN PLUG 1 SOCKET BN
    RDBK PLUG 2 SOCKET RDBK
X30/5 Left voltage distributor (CAN) connector PLUG 1 SOCKET GNWH Connectors 1-2, 4-11
    PLUG 2 SOCKET GN
    PLUG 1 SOCKET GNWH Connector 3
    PLUG 2 SOCKET GN
    PLUG 3 SOCKET BN
X30/7 Left voltage distributor (CAN) connector PLUG 1 SOCKET BNRD Connectors 1, 4-10
    PLUG 2 SOCKET BN
    PLUG 1 SOCKET BNBK Connector 3
    PLUG 2 SOCKET BN
X30/8 Wake-up signal connector PLUG   SOCKET PK
    PLUG
    PLUG   SOCKET PK
    PLUG   SOCKET PK
    PLUG   SOCKET PK
    PLUG   SOCKET PK
    PLUG   SOCKET PK
    PLUG   SOCKET PK
    PLUG
    PLUG
X30/9 Circuit 15 voltage distributor
  UP TO 05/06 PLUG 1 SOCKET BKGY
    PLUG 2 SOCKET BKGY
    PLUG 3 SOCKET BKGY
    PLUG 4 SOCKET BKGY
    PLUG 5 SOCKET BKGY
    PLUG 6
    PLUG 7
    PLUG 8 SOCKET BKYE
    PLUG 9
    PLUG 10
  AS OF 06/06 PLUG 1 SOCKET BKGY
    PLUG 2
    PLUG 3
    PLUG 4
    PLUG 5
    PLUG 6
    PLUG 7
    PLUG 8
    PLUG 9
    PLUG 10
X30/12 Radio 'mute' plug distributor YE PLUG 1 SOCKET YE
X30/13 Circuit 58d potential splitter PLUG 1 SOCKET GYBU
    PLUG 2 SOCKET GYBU
    PLUG 3 SOCKET GYBU
    PLUG 4 SOCKET GYBU
    PLUG 5 SOCKET BUGY up to 05/04
    PLUG 6
    PLUG 7
    PLUG 8 SOCKET GYBU up to 08/03
    PLUG 9 SOCKET GYBU
    PLUG 10
X35/1 Left front door separation point
    BNGN PLUG 2.1 SOCKET BNGN
    BNGN PLUG
    GN PLUG 2.2 SOCKET GN
    GN PLUG
    BNYE PLUG 4.1 SOCKET BNYE
    BUYE PLUG 4.2 SOCKET BUYE
    BN PLUG 5.1 SOCKET BN
    YE PLUG 5.2 SOCKET GY
X35/3 Left rear door separation point
  UP TO 02/03 WHBN PLUG 1.1 SOCKET RDVT
    RDVT PLUG 1.2 SOCKET WHBN
  AS OF 03/03 RDVT PLUG 1.1 SOCKET RDVT
    WHBN PLUG 1.2 SOCKET WHBN
    BNGN PLUG 2.1 SOCKET BNPK
    GN PLUG 2.2 SOCKET PK
    BNBK PLUG 4.1 SOCKET BNBK
    BN PLUG 4.2 SOCKET BN
    BNYE PLUG 4.3 SOCKET BNYE
    BUYE PLUG 4.4 SOCKET BUYE
    GY PLUG 5.1 SOCKET GY
    BN PLUG 5.2 SOCKET BN
    BN PLUG 5.3 SOCKET BN
    RDWH PLUG 5.4 SOCKET RDWH
X35/27 PTS connector, cockpit warning display GNWH PLUG 1 SOCKET GNWH
    VT PLUG 2 SOCKET VT
    PK PLUG 3 SOCKET PK
X36/3 Fuel pump wiring harness connector
  Except M156, M113AMG BNGN PLUG 1 SOCKET BNGN
    BNGN PLUG
    RDGN PLUG 2 SOCKET RDGN
    BUPK PLUG 3 SOCKET BUPK
    BUBK PLUG 4 SOCKET BUBK
    BN PLUG 5 SOCKET BN
  Valid for Super Low Emission, M272 BN PLUG 1 SOCKET BN
      2
    RDGN PLUG 3 SOCKET RDGN
      4
    BNGN PLUG 5 SOCKET BNGN
    BNGN PLUG
    BUBK PLUG 6 SOCKET BUBK
    BUPK PLUG 7 SOCKET BUPK
    M113AMG BNGN PLUG 1 SOCKET BNGN
    BNGN PLUG
      2
    BUPK PLUG 3 SOCKET BUPK
    BUBK PLUG 4 SOCKET BUBK
      5
  M156 BNBK PLUG 1 SOCKET BNGN
      2
    BUBK PLUG 3 SOCKET BUPK
    GNBK PLUG 4 SOCKET BUBK
      5
X39/5 Handset transmitter and receiver connector
  UP TO 08/04, TELE AID BN PLUG 1 SOCKET
    RDWH PLUG 2 SOCKET
    GYWH PLUG 3 SOCKET
    GN PLUG 4 SOCKET
    YE PLUG 5 SOCKET
    OG PLUG 6 SOCKET
    RD PLUG 7 SOCKET
    WH PLUG 8 SOCKET
    BU PLUG 9 SOCKET
    BK PLUG 10 SOCKET
X39/47(1) Armrest CTEL connector BK PLUG 1 SOCKET
    GN PLUG 2 SOCKET
    BU PLUG 3 SOCKET
    RD PLUG 4 SOCKET
    BK PLUG 5 SOCKET
    BKWH PLUG 6 SOCKET
    GNWH PLUG 7 SOCKET
    BUWH PLUG 8 SOCKET
    RDWH PLUG 9 SOCKET
    BKWH PLUG 10 SOCKET
X39/47(2) Armrest CTEL connector BK PLUG   SOCKET BK
    TR PLUG S SOCKET TR
X39/48 Breakdown assistance/info button plug distributor
  UP TO 08/04, TELE AID PLUG 1 SOCKET WHYE
    PLUG 2 SOCKET GNYE
    PLUG 3 SOCKET GNRD
    PLUG 4 SOCKET BUYE
    PLUG 5 SOCKET GYBU
    PLUG 6 SOCKET BN
  Valid for UHI BK PLUG 1 SOCKET BK
    BKWH PLUG 6 SOCKET BKWH
  AS OF 09/04, N123/4   1
    WHYE PLUG 2 SOCKET WHYE
    GYYE PLUG 3 SOCKET GYYE
    GYBU PLUG 4 SOCKET GYBU
      5
      6
    GNYE PLUG 7 SOCKET BNYE
    BUYE PLUG 8 SOCKET BUYE
    BN PLUG 9 SOCKET BN
X39/50 Fiber optical cable connector (MOST) OG PLUG   SOCKET OG
X39/57 Bluetooth module connector BN PLUG 1.1
    RDBK PLUG 1.2
    GYPK PLUG 1.3
      1.4
    BU PLUG 2.1
    GN PLUG 2.2
      2.3
      2.4
      2.5
    OG PLUG 2.6
    GYWH PLUG 2.7
    BK PLUG 2.8
    BN PLUG 2.9
    RD PLUG 2.10
      2.11
      2.12
    RD PLUG 2.13
    BN PLUG 2.14
    TR PLUG 2.15   as of 03/03
    RDWH PLUG 2.16
    YE PLUG 2.17
    WH PLUG 2.18
X55/11 Left seat cushion ventilation motor connector RDYE PLUG 1 SOCKET RDGY
    BN PLUG 2 SOCKET BN
X55/13 Left seat backrest ventilation motor connector RDYE PLUG 1 SOCKET RDGN
    BN PLUG 2 SOCKET BNYE
X62/32 (A) Left rear axle electrical distributor connector BNGY PLUG 1 SOCKET BNGY Airmatic
    BUWH PLUG 2 SOCKET BUWH Airmatic
    BNWH PLUG 3 SOCKET BNWH Airmatic
    YEBK PLUG 4 SOCKET YEBK Airmatic
X62/32 (B) Left rear axle electrical distributor connector WHBU PLUG 1 SOCKET WHBU
    YEGY PLUG 2 SOCKET YEGY
    BKYE PLUG 3 SOCKET BKYE
      4
X62/32 (C) Left rear axle electrical distributor connector PLUG 1 SOCKET BNWH Except airmatic
    PLUG 2 SOCKET GNVT Except airmatic
    PLUG 3 SOCKET BNGY Except airmatic
      4   Except airmatic
X62/32 (D) Left rear axle electrical distributor connector PLUG 1 SOCKET BKGN
    PLUG 2 SOCKET BK
X103 (1) Through-loading facility separation point
  Valid for wagon PLUG 1 SOCKET BN
    PLUG 2 SOCKET BUBN
  Valid for sedan BN PLUG 1 SOCKET BN
    BUPK PLUG 2 SOCKET BUPK
X103 (4) Through-loading facility separation point BN PLUG 1 SOCKET BN Wagon
    BNWH PLUG 2 SOCKET BNWH Wagon
    BNYE PLUG 3 SOCKET BNYE Wagon
X150/1 Driver NECK-PRO head restraint solenoid separation point BN PLUG 1 SOCKET
    BUYE PLUG 2 SOCKET
