Arrangement and assignment of the wiring and plug connectors, interior compartment (cockpit) - GF00.19-U-1000-03DA

MODEL 211

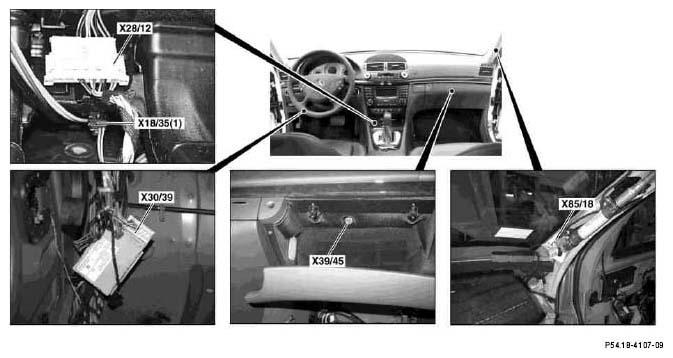

Fig 1: Arrangement And Assignment Of Wiring And Plug Connectors, Interior Compartment (Cockpit) (1 Of 2)
G04982376

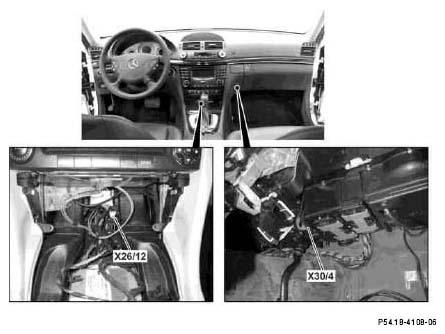

Fig 2: Arrangement And Assignment Of Wiring And Plug Connectors, Interior Compartment (Cockpit) (2 Of 2)
G04982377
Item Designation Cable colors Cable colors Notes
X18/35 (1) Cockpit wiring harness and FFS [RBA] connector BUWH PLUG 1 SOCKET BUWH 4 Zone AC
    RD PLUG 2 SOCKET RD 4 Zone AC
X26/12 Interior/transmission connector
  Valid for Keyless Go BNBK PLUG 1 SOCKET BNBK
    BN PLUG 2 SOCKET BN
    BUYE PLUG 3 SOCKET BUYE
X28/12 Airbag connector GN PLUG 1.1 SOCKET GN
    VT PLUG 1.2 SOCKET VT
    BNBK PLUG 1.3 SOCKET BNBK
    BUGN PLUG 1.4 SOCKET BUGN
    BU PLUG 1.5 SOCKET BU
    YE PLUG 1.6 SOCKET YE
    BNGN PLUG 1.7 SOCKET BNGN
    BUBK PLUG 1.8 SOCKET BUBK
      1.9
      1.10
X30/39 CAN-D voltage distributor connector
    PLUG 1.1 SOCKET WH
    PLUG 1.2 SOCKET GN
    PLUG 1.3 SOCKET BN
    PLUG 2.1 SOCKET WH
    PLUG 2.2 SOCKET GN
    PLUG 3.1 SOCKET WH
    PLUG 3.2 SOCKET GN
X30/4 Cockpit voltage distributor (CAN) connector PLUG 1 SOCKET BNRD Connector 1,2,3,4,5,8
    PLUG 2 SOCKET BN
X39/45 Walkman separation point
  AS OF 03/03   1 SOCKET WH
      2 SOCKET BN
      3 SOCKET TR
X85/18 Roof solar module connector RDYE PLUG 1 SOCKET BU
    WHYE PLUG 2 SOCKET RD
    BN PLUG 3 SOCKET BK
