Arrangement and assignment of the wiring and plug connectors, engine compartment (right) - GF00.19-U-1000-02DA

MODEL 211

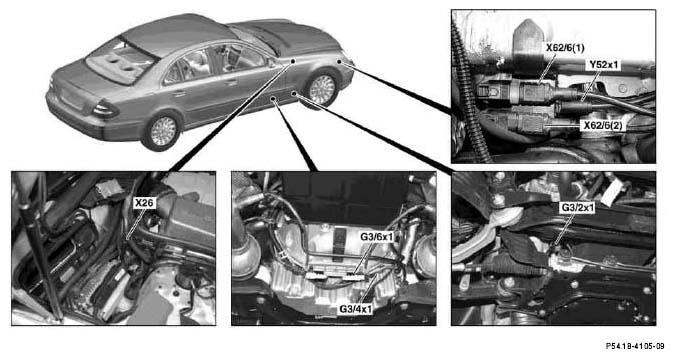

Fig 1: Arrangement And Assignment Of Wiring And Plug Connectors, Engine Compartment (Right) (1 Of 2)
G04982374

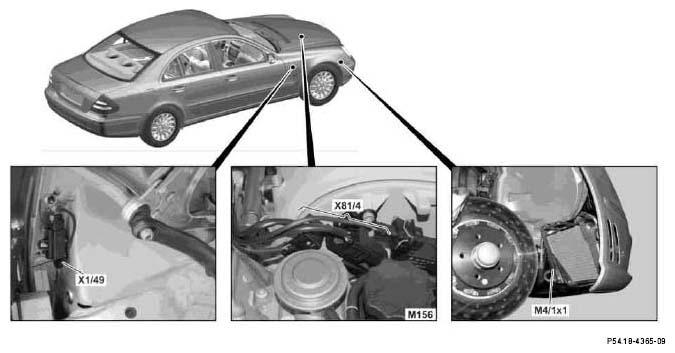

Fig 2: Arrangement And Assignment Of Wiring And Plug Connectors, Engine Compartment (Right) (2 Of 2)
G04982375
Item Designation Cable colors Cable colors Notes
G3/2x1 O2 sensor upstream TWC [KAT] connector
  M642 PLUG 1 SOCKET GYRD
    PLUG 2 SOCKET GNBU
    PLUG 3 SOCKET GYBN
    PLUG 4 SOCKET RDBK
    PLUG 5 SOCKET GYWH
    PLUG 6 SOCKET GNBK
G3/4x1 Right O2 sensor upstream TWC [KAT] connector
  M112, M113, 113 AMG RDGN PLUG 1 SOCKET
    BNGY PLUG 2 SOCKET
    GN PLUG 3 SOCKET
    BKBN PLUG 4 SOCKET
G3/4x1 Right O2 sensor upstream TWC [KAT] connector
  M272 PLUG 1 SOCKET BU
    PLUG 2 SOCKET BKBU
    PLUG 3 SOCKET GN
    PLUG 4 SOCKET RDGN
    PLUG 5 SOCKET WH
    PLUG 6 SOCKET BNBK
G3/4x1 Right O2 sensor upstream TWC [KAT] connector
  M156 PLUG 1 SOCKET GYRD
    PLUG 2 SOCKET GNBU
    PLUG 3 SOCKET GYBN
    PLUG 4 SOCKET RDBK
    PLUG 5 SOCKET GYWH
    PLUG 6 SOCKET GNBK
G3/4x1 Right O2 sensor upstream TWC [KAT] connector
  M273 PLUG 1 SOCKET BU
    PLUG 2 SOCKET BKBU
    PLUG 3 SOCKET GN
    PLUG 4 SOCKET RDGN
    PLUG 5 SOCKET WH
    PLUG 6 SOCKET BNBK
G3/6x1 Right O2 sensor downstream TWC [KAT] connector
  M112, M113, M113 AMG RDGN PLUG 1 SOCKET
    BNGY PLUG 2 SOCKET
    BNWH PLUG 3 SOCKET
    BU PLUG 4 SOCKET
G3/6x1 Right O2 sensor downstream TWC [KAT] connector
  M156 RDBK PLUG 1 SOCKET
    BNGY PLUG 2 SOCKET
    BUBN PLUG 3 SOCKET
    BU PLUG 4 SOCKET
G3/6x1 Right O2 sensor downstream TWC [KAT] connector
  M273 RDGN PLUG 1 SOCKET
    VT PLUG 2 SOCKET
    BNWH PLUG 3 SOCKET
    RD PLUG 4 SOCKET
M4/1x1 Oil cooler fan connector
  M113 AMG up to 05/06, M156 up to 05/07 BN PLUG 1 SOCKET
    RDBU PLUG 2 SOCKET
X1/49 Right front tire pressure monitor separation point RDWH PLUG 1 SOCKET RDWH
    YERD PLUG 2 SOCKET YERD
    BNGY PLUG 3 SOCKET BNGY
    BNGY PLUG 4 SOCKET BNGY
X26 Interior and engine wiring harness connector
  M156 BUGN PLUG 1 SOCKET BUGN
    BNVT PLUG 2 SOCKET BN
    VTWH PLUG 3 SOCKET VTWH
    RDBU PLUG 4 SOCKET RDBU
    RDGN PLUG 5 SOCKET RDGN
      6
    BNVT PLUG 7 SOCKET BN
      8 SOCKET RDBK
X62/6 (1) Right front axle multiple circuit junction connector, in component compartment PLUG 1 SOCKET GN
    PLUG 2 SOCKET WHYE
X62/6 (2) Right front axle multiple circuit junction connector, in component compartment PLUG 1 SOCKET BNYE
    PLUG 2 SOCKET BN
X81/4 Engine wiring harness/throttle valve actuator connector BU PLUG 1.1 SOCKET BU
    WH PLUG 1.2 SOCKET WH
    YE PLUG 1.3 SOCKET YE
    GY PLUG 1.4 SOCKET GY
      1.5
    BK PLUG 1.6 SOCKET BK
    BKBU PLUG 2.1 SOCKET BKBU
    BKWH PLUG 2.2 SOCKET BKWH
    BKYE PLUG 2.3 SOCKET BKYE
    VT PLUG 2.4 SOCKET VT
      2.5
    BKVT PLUG 2.6 SOCKET BKVT
Y52x1 Right front axle damping valve unit connector PLUG 1 SOCKET WHPK
    PLUG 2 SOCKET WHBK
    PLUG 3 SOCKET YEPK
      PLUG
