Arrangement and assignment of ground terminals, interior compartment (left) - GF00.19-U-2000-04DA

MODEL 211

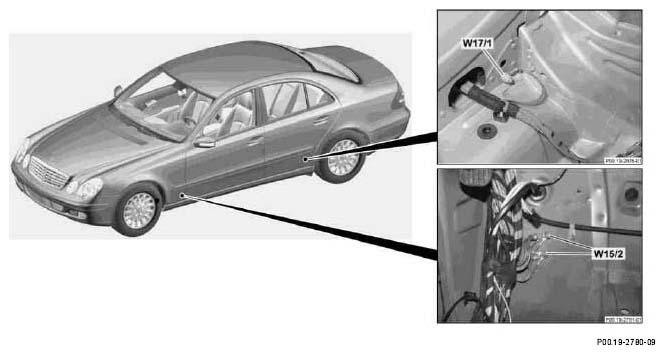

Fig 1: Arrangement And Assignment Of Ground Terminals, Interior Compartment (Left)

Ground point	Designation	Comp.	Designation	Conn. pin
W15/2	Ground (left footwell)	→ A2	Radio	1a.1
		→ A2/56	Radio control panel and navigation unit	1a.2
		→ A76	Left front reversible emergency tensioning retractor	4
	UP TO 05/04	→ E13/12x1	Right front stowage compartment illumination connector	1
		→ N10/1	Driver-side SAM control module with fuse and relay module	I2.1
		→ N25/7	HS [SIH] and seat ventilation control module	1.1
		→ N32/1	Driver front seat adjustment control module with memory	2.2
		→ N69/3	Rear left door control module	5.4
		→ N69/8	Left rear door Keyless Go control module	3.3
		→ N72	Lower control field control module	1.3
		→ N102	Rear module Keyless Go control module	2.1
		→ R13/1	Left front seat heated cushion	1
		→ R13/2	Left front backrest heated cushion	1
		→ R13/3	Right front seat heated cushion	1
		→ R13/4	Right front backrest heated cushion	1
		→ X35/3	Left rear door separation point	5.3
	UP TO 02/03	→ X55/3	Driver seat contacting strip	4.1
	AS OF 03/03	→ X55/3	Driver seat contacting strip	5.1
	UP TO 02/03	→ X55/4	Front passenger seat contacting strip	4.1
	AS OF 03/03	→ X55/4	Front passenger seat contacting strip	5.1
		→ Z6/47z1	Ground (W15/2) connector sleeve
		→ Z6/47z3	Ground (W15/2) connector sleeve
		→ Z6/47z10	Ground (W15/2) connector sleeve
		→ Z6/56z1	Circuit 31 connector sleeve
		→ Z6/100	COMAND circuit 31 connector sleeve
W17/1	Ground (left rear seat)
	up to 05/06	→ N87/5	SDAR control unit	1.1
	as of 09/04	→ Z6/56	Circuit 31 connector sleeve
	as of 09/04	→ Z6/56z1	Circuit 31 connector sleeve
	up to 08/04	Z51/15z1	Interior connector sleeve, radio and CTEL, circuit 31
