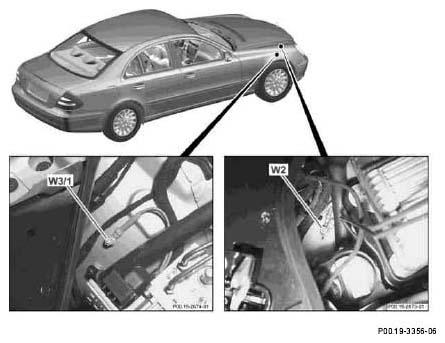

Arrangement and assignment of ground terminals, engine compartment (right) - GF00.19-U-2000-02DA
MODEL 211
| Ground point | Designation | Comp. | Designation | Conn. pin |
|---|---|---|---|---|
| W2 | Ground (at right headlamp unit) | |||
| → E2 | Right front headlamp unit | S1.1 | ||
| Valid for xenon headlamps, as of 06/06 | → E2 | Right front headlamp unit | S2.1 | |
| up to 05/06 | → E6/2 | Right front side marker lamp |
1 | |
| M113 AMG up to 05/06, M156 up to 05/07 | → M4/1 | Oil cooler fan | x1.1 | |
| → M4/7 | Electric suction fan engine and AC with integrated control | 1 | ||
| as of 06/06 | → M5/1 | Windshield washer fluid pump | 2 | |
| M113 AMG | → M44 | Charge air cooler circulation pump | 1 | |
| M112 | → N56 | Radiator shutter control module | 1 | |
| → Z6/49 | Ground (W2) connector sleeve | |||
| → Z6/49z1 | Ground (W2) connector sleeve | |||
| → Z6/50z1 | Ground (W9) connector sleeve | |||
| W3/1 | Ground (right front wheelhousing) | |||
| up to 05/06 | → A7/3 | Traction system hydraulic unit | 37 | |
| 44 | ||||
| as of 06/06 | → A7/3 | Traction system hydraulic unit | A.16 | |
| A.47 |
