Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - trunk (left) - GF00.19-U-3000-06DA
MODEL 211
| Z conn. sleeve | Designation | Comp. | Designation | Conn. pin |
|---|---|---|---|---|

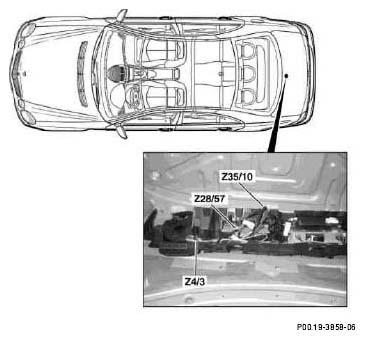

| Z4/3 | Circuit 30 connector sleeve | ← F33 | Rear prefuse | 85 |
| → A28/3 | E-net compensator | 1.1 | ||
| → N112 | Telecommunications control module | 1.2 1.12 |
||
| → N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) control module | 1.20 1.21 |
||
| → X39/57 | Bluetooth module connector | 1.2 | ||

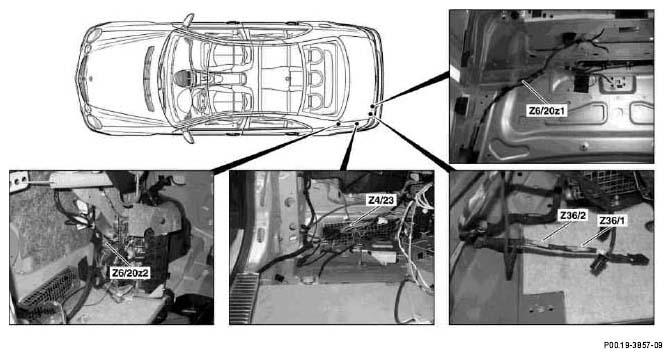

| Z4/23 | Antenna circuit 30 connector sleeve | ← N10/2 | Rear SAM control module with fuse and relay module | 23.4 |
| → A2/64 | Left antenna amplifier module | 5.2 | ||
| → A2/71 | Amplifier module 1, screen antenna | 6.3 | ||

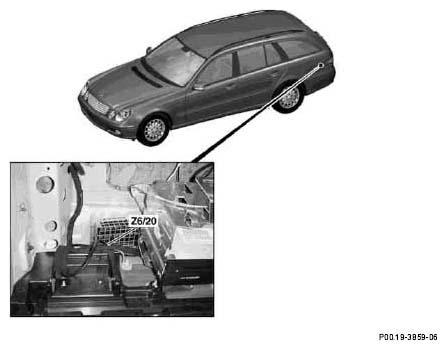

| Z6/20 | Tailgate ground connector sleeve | ← W8/3 | Ground (tailgate - bottom) | |
| Valid for Wagon | → E3/1 | Left rear door taillamp | 1.3 | |
| → E4/1 | Right rear door taillamp | 1.3 | ||
| → E37 | Rear-end door spotlight | 1 | ||
| → E19/1 | Left license plate lamp | 1 | ||
| UP TO 05/05 | → R2/8 | Tailgate washer nozzle heater | 2 | |
| → S62/26 | RTL [HDFS] pushbutton | 1 | ||
| Z6/20z1 | Tailgate ground connector sleeve | ← W6 | Ground (left wheelhousing in trunk) | |
| Valid for Sedan | → E19/1 | Left license plate lamp | 1 | |
| → E19/2 | Right license plate lamp | 1 | ||
| → E21 | Center high-mounted stop lamp | 1 | ||
| → E40 | Trunk lid ambient lamp | 1 | ||
| UP TO 02/03 | → S88/4 | Pawl rotary tumbler switch | 2 | |
| AS OF 03/03 | → S88/4 | Pawl rotary tumbler switch | 3 | |
| → S88/6 | Trunk lid contact switch | 1 | ||
| → S88/8 | Trunk lid external operation switch | 1 | ||
| Z6/20z1 | Tailgate ground connector sleeve | ← W8/3 | Ground (tailgate - bottom) | |
| Valid for Wagon | → E19/ | Right license plate lamp | 1 | |
| → M6/4 | Tailgate wiper motor | 3 | ||
| Z6/20z2 | Tailgate ground connector sleeve | ← W6 | Ground (left wheelhousing in trunk) | |
| Valid for Sedan | → E3 | Left taillamp | 5 | |
| → E4 | Right taillamp | 5 | ||
| → E18/4 | Right trunk lamp | 1 | ||
| → E18/5 | Left trunk lamp | 1 | ||
| Z28/57 | Portable CTEL control signals connector sleeve | ← N123/4 | Emergency call system control unit | 1.14 |
| → A28/3 | E-net compensator | 1.3 | ||
| → N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) control module | 1.28 | ||
| Z35/10 | MOST wake-up signal connector sleeve | ← X30/8 | Wake-up signal connector | |
| → A35/11 | Voice control system control module | 1A.18 | ||
| → N87/5 | SDAR control unit | 1.3 | ||
| UP TO 08/04 | → N112 | Telecommunications control module | 1.23 | |
| AS OF 09/04 | → N123/1 | Universal Portable CTEL Interface (UPCI [UHI]) control module | 1.24 | |
| Z36/1 | Rear PTS sensor ground connector sleeve | ← N62 | PTS control module | A.8 |
| up to 05/06 | → A43 | PTS sensor unit, rear bumper | 7.2 8.2 9.2 10.2 |
|
| as of 06/06 | → B8/7 | Outer right rear PTS ultrasonic sensor | 2 | |
| as of 06/06 | → B8/8 | Inner right rear PTS ultrasonic sensor | 2 | |
| as of 06/06 | → B8/9 | Inner left rear PTS ultrasonic sensor | 2 | |
| as of 06/06 | → B8/10 | Outer left rear PTS ultrasonic sensor | 2 | |
| → X35/28 | PTS connector, rear bumper | 5 | ||
| Z36/2 | Rear PTS sensor voltage supply connector sleeve | ← N62 | PTS control module | A.28 |
| up to 05/06 | → A43 | PTS sensor unit, rear bumper | 7.4 8.4 9.4 10.4 |
|
| as of 06/06 | → B8/7 | Outer right rear PTS ultrasonic sensor | 3 | |
| as of 06/06 | → B8/8 | Inner right rear PTS ultrasonic sensor | 3 | |
| as of 06/06 | → B8/9 | Inner left rear PTS ultrasonic sensor | 3 | |
| as of 06/06 | → B8/10 | Outer left rear PTS ultrasonic sensor | 3 | |
| → X35/28 | PTS connector, rear bumper | 4 |
