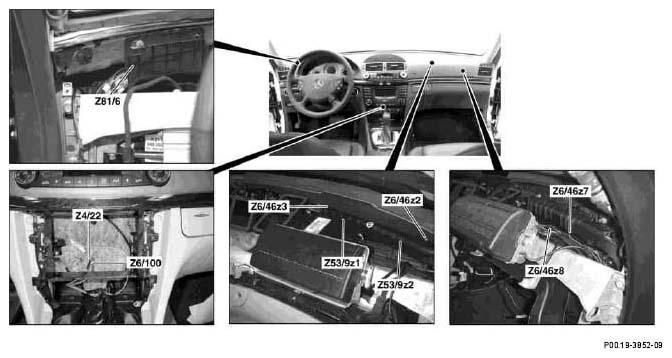

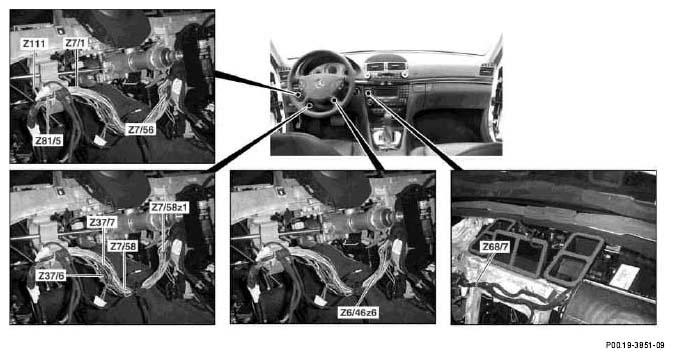

Arrangement and assignment of Z connector sleeves (solder splices in wiring harness) - cockpit - GF00.19-U-3000-03DA
MODEL 211
| Z conn. sleeve | Designation | Comp. | Designation | Conn. pin |
|---|---|---|---|---|
| Z4/22 | COMAND circuit 30 connector sleeve | ← F34 | Interior fuse box | 28 |
| → A40/ | COMAND operating, display and control module | 1.1 | ||
| Z6/46z2 | Ground (W15/1) connector sleeve | |||
| ← W15/1 | Ground (right footwell) | |||
| UP TO 05/06 | → A2/6 | CD changer | 1a.2 | |
| UP TO 05/06 | → E10/5 | Rear air outlet illumination | x1.1 | |
| UP TO 05/06 | → N72/1 | Upper control panel control module | 1.6 | |
| AS OF 06/06 | → R3 | Illuminated cigar lighter | x1.1 | |
| 4 Zone AC, UP TO 05/06 | → S81 | Control panel rear switch group | 1 | |
| → X58/1 | Interior socket | 1 | ||
| → Z6/46z3 | Ground (W15/1) connector sleeve | 1 | ||
| Z6/46z3 | Ground (W15/1) connector sleeve | |||
| ← Z6/47z2 | Ground (W15/2) connector sleeve | |||
| AS OF 06/06 | → E10/5 | Rear air outlet illumination | x1.1 | |
| AS OF 06/06 | → N10/11 | Passenger-side SAM control module | I1.1 | |
| AS OF 06/06 | → N72/1 | Upper control panel control module | 1.4 1.6 |
|
| AS OF 06/06 | → S12 | Parking brake indicator switch | 2 | |
| 4 Zone AC, AS OF 06/06 | → S81 | Control panel rear switch group | 1 | |
| Z6/46z6 | Ground (W15/1) connector sleeve | ← W15/1 | Ground (right footwell) | |
| → E10/2 | Left air outlet illumination | 1 | ||
| → N73 | EIS [EZS] control unit | B.2 | ||
| → N80 | Steering column module | 8 | ||
| UP TO 05/04 | → N80 | Steering column module | 1 | |
| AS OF 06/04 | → N80 | Steering column module | 5 | |
| → S1 | Exterior lamp switch | 13 | ||
| Z6/46z7 | Ground (W15/1) connector sleeve | ← W15/1 | Ground (right footwell) | |
| → B10/4 | In-car temperature sensor | 1 | ||
| → E10/3 | Right air outlet illumination | 1 | ||
| → E13/2 | Glove compartment illumination with switch | 1 | ||
| → E17/15 | Right front footwell lamp | 2 | ||
| Z6/46z8 | Ground (W15/1) connector sleeve | ← W15/1 | Ground (right footwell) | |
| → A1 | Instrument cluster | 1 | ||
| → N26/5 | Electric steering lock control module | 3 | ||
| Z6/100 | COMAND circuit 31 connector sleeve | ← W15/2 | Ground (left footwell) | |
| → A40/3 | COMAND operating, display and control module | 1.2 | ||
| Z68/7 | Cockpit AC System sensor ground | |||
| ← N22/7 | Comfort AAC pushbutton control module | 1.15 | ||
| → B10/4 | In-car temperature sensor | 3 | ||
| → B10/6 | Evaporator temperature sensor | 1 | ||
| Z7/1 | Circuit 30 connector sleeve | |||
| up to 05/06 | ← N10/1 | Driver-side SAM control module with fuse and relay module | C1.8 | |
| up to 05/06 | → A1 | Instrument cluster | 4 | |
| up to 05/06 | → N22/7 | Comfort AAC pushbutton control module | 1.14 | |
| up to 05/04 | → N80 | Steering column module | 14 | |
| Z7/56 | Keyless Go control bus connector sleeve (+ signal) | |||
| ← N73 | EIS [EZS] control unit | A.1 | ||
| → N69/8 | Left rear door Keyless Go control module | 2.1 | ||
| → N69/9 | Right rear door Keyless Go control module | 2.1 | ||
| → N102 | Rear module Keyless Go control module | 3.1 | ||
| → N103 | Interior module Keyless Go control module | 3 | ||
| → X26/12 | Interior/transmission connector | 1 | ||
| → X35/3 | Left rear door separation point | 4.1 | ||
| → X35/4 | Right rear door separation point | 4.1 | ||
| Z7/58 | Circuit 30 connector sleeve | ← N10/1 | Driver-side SAM control module with fuse and relay module | C1.12 |
| → N26/5 | Electric steering lock control module | 4 | ||
| → N73 | EIS [EZS] control unit | C.1 | ||
| Z7/58z1 | Circuit 30z connector sleeve | |||
| AS OF 06/04 | ← F34 | Interior fuse box | 29 | |
| UP TO 05/04 | ← N10/1 | Driver-side SAM control module with fuse and relay module | C2.12 | |
| ← N73 | EIS [EZS] control unit | B.3 | ||
| → N80 | Steering column module | 9 | ||
| → S1 | Exterior lamp switch | 9 | ||
| Z37/6 | CAN databus (high) connector sleeve | ← X30/5 | Left voltage distributor (CAN) connector 7.1 | 7.1 |
| → A1 | Instrument cluster | 13 | ||
| → N73 | EIS [EZS] control unit | B.6 | ||
| → N80 | Steering column module | 10 | ||
| Z37/7 | CAN bus (low) connector sleeve | ← X30/5 | Left voltage distributor (CAN) connector 7.2 | 7.2 |
| → A1 | Instrument cluster | 12 | ||
| → N73 | EIS [EZS] control unit | B.5 | ||
| → N80 | Steering column module | 11 | ||
| Z53/9z1 | Interior sleeve connector, airbag circuit 31 | ← W26 | Ground (restraint systems control module) | |
| → A53/1 | Driver-side side airbag and window airbag sensor | 2 | ||
| as of 03/03 | → B48/1 | Driver-side frontal acceleration sensor | 2 | |
| → S68/4 | Passenger-side seat belt buckle restraint systems switch | 2 | ||
| up to 02/03 | → X55/4 | Front passenger seat contacting strip | 8.1 12.5 |
|
| as of 03/03 | → X55/4 | Front passenger seat contacting strip | 2.13 | |
| Z53/9z2 | Interior sleeve connector, airbag circuit 31 | ← W26 | Ground (restraint systems control module) | |
| → A54/1 | Passenger-side side airbag and window airbag sensor | 1 | ||
| up to 02/03 | → B48 | Passenger seat occupied and child seat recognition sensor | 4 | |
| up to 02/03 | → B48/1 | Driver-side frontal acceleration sensor | 2 | |
| → B48/2 | Passenger-side frontal acceleration sensor | 2 | ||
| → S68/3 | Driver-side seat belt buckle restraint systems switch | 2 | ||
| up to 02/03 | → X55/3 | Driver seat contacting strip | 8.1 12.3 |
|
| as of 03/03 | → X55/3 | Driver seat contacting strip | 2.13 | |
| Z81/5 | Circuit 58d COC connector sleeve | ← N10/1 | Driver-side SAM control module with fuse and relay module | C2.1 |
| → E10/2 | Left air outlet illumination | 1 | ||
| → E10/3 | Right air outlet illumination | 2 | ||
| → S1 | Exterior lamp switch | 7 | ||
| → S93/3 | SOS/ATA [EDW] switch group | 4 | ||
| → X25/8 | Overhead control panel and FFS [RBA] connector | 3.3 | ||
| Z81/6 | Circuit 58d connector sleeve | ← X30/13 | Circuit 58d potential splitter | 9 |
| → S93/3 | SOS/ATA [EDW] switch group | 4 | ||
| → S93/6 | MB-Info and telediagnosis button group | 5 | ||
| → X25/8 | Overhead control panel and FFS [RBA] connector | 3.3 | ||
| as of 09/04 | → X39/48 | Breakdown assistance/info button plug distributor | 4 | |
| up to 08/04 | → X39/48 | Breakdown assistance/info button plug distributor | 5 | |
| Z111 | Voltage supply connector sleeve | ← N10/1 | Driver-side SAM control module with fuse and relay module | C1.2 |
| → A32 | Heating systems recirculation unit | 2 | ||
| → B10/4 | In-car temperature sensor | 2 | ||
| → N22/7 | Comfort AAC pushbutton control module | 3.13 | ||
| 4 Zone AC | → S81 | Control panel rear switch group | 3 | |
| Valid for solar ventilation | → N34/1 | Solar generator control module | 6 | |
| 4 Zone AC | → X18/35 | Cockpit wiring harness and FFS [RBA] connector | 1.2 |
