Remove/install door lining on rear-end door - AR72.20-P-3520T
MODEL 211.2
MODIFICATION NOTES
| 8.1.04 | Disconnect/connect/remove ground line from battery |
| Remove/Install | |||
|---|---|---|---|
| 1 | Switch off luggage compartment lamp (E18/1) by locking the rear-end door lock with suitable screwdriver | ||

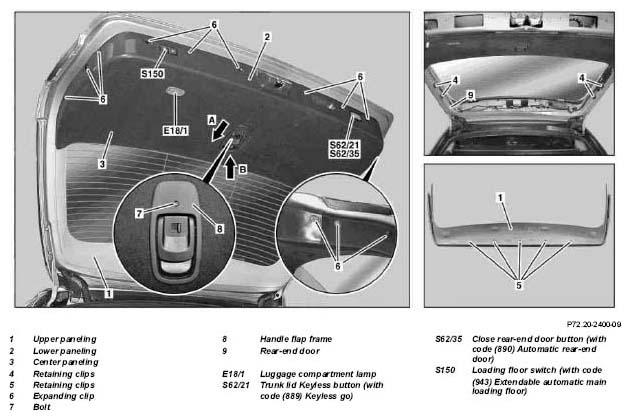

| 2 | Unclip upper paneling (1) on retaining clips (4, 5) from rear-end door (9) with mounting wedge and remove | ||
| Figure | |||
Ensure that upper paneling (1) is seated correctly. |
|||
| 3 | Remove expanding clips (6) | ||
| 4.1 | Remove bottom paneling (2) until electrical connector on rear-end door closing button (S62/35) is accessible and disconnect electrical connector on rear-end door closing button (S62/35) | On vehicles with code (890) Automatic rear end door | |
| 5.1 | Remove bottom paneling (2) until electrical connector on loading floor switch (S150) is accessible and disconnect electrical connector on loading floor switch (S150) | On vehicles with code (943) Automatically extending main loading floor | |
| 6.1 | Remove bottom paneling (2) until electrical connector on trunk lid Keyless go button (S62/21) is accessible and disconnect electrical connector on trunk lid Keyless go button (S62/21) | On vehicles with code (889) Keyless go | |
| 7 | Remove bottom paneling (2) from rear-end door (9) | ||
| 8 | Remove bolt (7) | ||
| 9 | Slide handle flap frame (8) in direction of arrow (arrow A) and remove | ||
| 10 | Lift center paneling (3) in area of inner handle flap with mounting wedge (arrow B) | Figure | |
| 11 | Slide center paneling (3) in direction of arrow (arrow A) and lower until electrical connector on luggage compartment lamp (E18/1) is accessible | ||
| 12 | Disconnect electrical connector from luggage compartment lamp (E18/1) and remove center paneling (3) | ||
| 13 | Install in the reverse order |
