Remove/install front floor covering (left) - AR68.20-P-2050T

MODEL 211.0/ 2/ 6

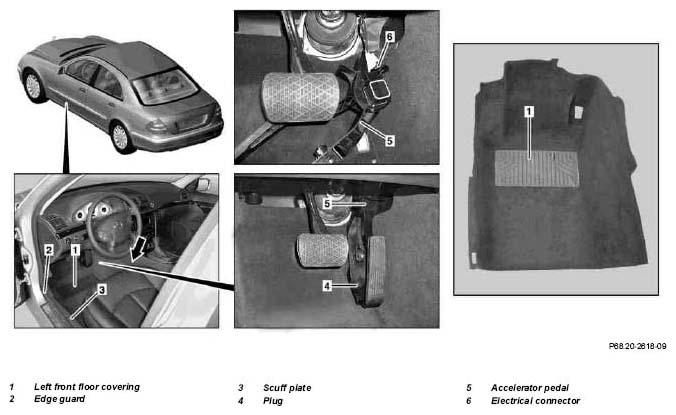

Fig 1: Identifying Front Floor Covering (Left)

Shown on model 211.0

	Remove/Install
1	Remove cover below left of instrument panel		AR68.10-P-1500T
2	Remove left A-pillar paneling	Footwell paneling	AR68.30-P-4050TA
3	Remove edge guard (2) in area of scuff plate (3)
4	Remove scuff plate (3)
5	Remove plugs (4) from accelerator pedal (5) with mounting wedge and unscrew nut below		Figure
6	Remove accelerator pedal (5) and disconnect electrical connector (6) from accelerator pedal (5)
7	Pull out left front floor covering (1) from below instrument panel (arrow)
8	Remove left front floor covering (1)
9	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)
