Replace bottom rear end center assembly complete - AR64.20-P-1000T: Notes

MODEL 211.0

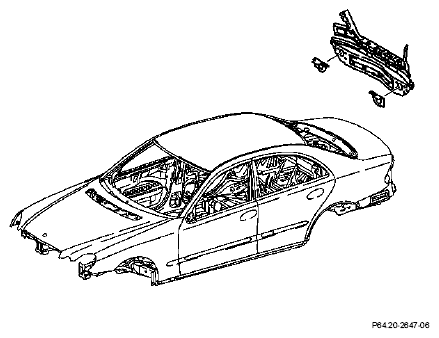

Fig 1: Identifying Bottom Rear End Center Assembly
G04985212
REMOVING Remove
DANGER Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and untrimmed vehicle parts. Deburr metal repairs. AS00.00-Z-0017-01A
DANGER Risk of death.  Death may result if vehicle slips or topples from the lifting platform. Align vehicle between columns of lifting platform and position the four support plates below support points specified by vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of death  caused by high voltage used for arc welding. Risk of explosion  caused by welding in the area of high combustible materials. Risk of injury caused by welding spatter and UV-light while welding.
Risk of poisoning  caused by inhaling welding vapors.
Use insulating mats. Wear protective clothing, safety glasses, and protective mask. Remove highly inflammable materials from the danger zone.
Use air extractor.
AS00.00-Z-0007-01A
NOTES General information on repairs to body All models AH60.00-N-0001-01A
NOTES Measures for preventing damage to vehicles or components when performing arc welding work All models AH00.00-N-0005-01A
NOTES Notes on paintwork repairs All models AH98.00-P-9408-02A
IMPORTANT General information on MB materials All models AH98.00-P-9409-03A
1 Remove detachable body components in area to be repaired
2 Cover all detachable body components remaining in vehicle (area to be repaired) Tarpaulin (fireproof) *WH58.30-Z-1001-40A
3 Cut off rear end center assembly   AR64.20-P-1000-02T
    SPECIAL TOOL Welding spot milling cutter Figure
    COMMERCIALLY AVAILABLE TOOLS Ball-type miller cutter, dia. 12 mm *WH58.30-Z-1002-01A
    COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    COMMERCIALLY AVAILABLE TOOLS Vario Drill WS 91 spot-weld loosening tool *WH58.30-Z-1006-01A
    COMMERCIALLY AVAILABLE TOOLS Grinding disc, dia. 115 mm, 80 m/s (max. 13.250 rpm) *WH58.30-Z-1024-04A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
    Straight grinder (electric/pneumatic) *WE58.40-Z-1002-03A
    Angular grinder (electric/pneumatic) *WE58.40-Z-1003-03A
    Body saw (electric/pneumatic) *WE58.40-Z-1004-03A
    Wet/dry vacuum cleaner *WE58.40-Z-1005-03A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
4 Prepare bottom rear center section for installation   AR64.20-P-1000-07T
    COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
INSTALLING Install
5 Install bottom rear center section and weld in   AR64.20-P-1000-08T
    SPECIAL TOOL Feeler gage Figure
    COMMERCIALLY AVAILABLE TOOLS Round wire brush, braided, dia. 70 mm *WH58.30-Z-1001-03A
    COMMERCIALLY AVAILABLE TOOLS Electrode miller *WH58.30-Z-1003-01A
    COMMERCIALLY AVAILABLE TOOLS Clamping pliers *WH58.30-Z-1003-02A
IMPORTANT General notes on riveting   AH60.00-P-0003-01N
    COMMERCIALLY AVAILABLE TOOLS Hand riveter *WH58.30-Z-1003-29A
    Blind rivet tool PowerBird *WE58.40-Z-1003-14A
    COMMERCIALLY AVAILABLE TOOLS Screw-on clamping gripper, dia. 6.4 mm - Clamping range 0-15 mm, identification color silver *WH58.30-Z-1038-02A
    Rivet *BR00.45-Z-1001-13A
    Inert gas welder *WE58.40-Z-1001-02A
    Drill (electric/pneumatic) *WE58.40-Z-1001-03A
    Spot welder *WE58.40-Z-1002-02A
    Wet/dry vacuum cleaner *WE58.40-Z-1005-03A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
    MB body sealant for sealing seams (suitable for painting/310ml cartridge) *BR00.45-Z-1003-01A
    MB preservative *BR00.45-Z-1003-05A
6 Adjust gap dimensions on hoods, doors and covers   AR60.00-P-0700-01T
    Rear fender to taillamp *BE60.00-P-1003-01F
    Trunk lid to upper rear fender *BE60.00-P-1003-01F
    Trunk lid cover to taillamp *BE60.00-P-1003-01F
    Rear door to upper side section *BE60.00-P-1002-01F
    Rear door to bottom side section *BE60.00-P-1002-01F
    Fuel filler flap *BE60.00-P-1004-01F
7 Clean weld joints and metal flanges with wire brush
8 Clean areas to be repaired and prime with primer/filler
9 Seam sealing following repair IMPORTANT Supplement standard seals with MB body sealant. AR97.10-P-4000T
    Sealant *BR00.45-Z-1003-01A
    Seam sealant, sprayable 310 ml *BR00.45-Z-1041-01A
10 Paint areas to be repaired and adjacent surfaces
11 Hollow cavity preservation following repair work
NOTES Notes on hollow cavity preservation Models 124, 126, 129, 140, 170, 201, 202, 203, 208, 210, 211, 215, 220, 463, 671 AH97.20-P-0001-01B
12 Install all removed detachable body components
TEST VALUES FOR GAPS ON HOODS, DOORS AND LIDS

Number Designation Model 211.0
BE60.00-P-1002-01F Gap dimensions Front door to A-pillar Dimension "D" mm 4.5 (± 0.5)
Front door to fender Dimension "E" mm 4 (± 0.5)
Front door to rear door Dimension "F" mm 4 (+1)
Front door to roof Dimension "G" mm 4.5 (± 0.5)
Rear door to upper side section Dimension "H" mm 4.5 (± 0.5)
Rear door to lower side section Dimension "I" mm 3.5 (± 0.5)
  Fig., see AR60.00-P-0700-01T
BE60.00-P-1003-01F Gap dimensions Trunk lid to top of rear fender Dimension "J" mm 3.5 (+1)
Trunk lid to taillamp Dimension "K" mm 3.9 (+1)
Trunk lid to bumper Dimension "L" mm 6.5 (-0.5/+1)
Rear fender to taillamp Dimension "M" mm 2.5 (± 0.5)
Trunk lid cover to taillamp Dimension "N" mm 4.3 (+1)
  Fig., see AR60.00-P-0700-01T
BE60.00-P-1004-01F Gap dimensions Fuel filler flap Dimension "O" mm 3.5 (± 0.5)
Fig., see AR60.00-P-0700-01T
Fig 2: Identifying Welding Spot Milling Cutter (201 589 00 51 00)
G04985213
Fig 3: Identifying Feeler Gage (129 589 03 21 00)
G04985214
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1002-01A Ball cutter, dia. 12 mm
WH58.30-Z-1003-01A Electrode miller
WH58.30-Z-1006-01A Vario Drill WS 91 spot weld removing tool
WH58.30-Z-1003-02A Clamping pliers
WH58.30-Z-1038-02A Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Firma Hausmann GmbH D-34346 Hann. Munden, Germany
WH58.30-Z-1001-03A Round wire brush, braided, dia. 70 mm
WH58.30-Z-1024-04A Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 rpm)
WH58.30-Z-1003-29A Hand riveter
WH58.30-Z-1001-40A Tarp (fire-resistant)
WORKSHOP EQUIPMENT

WE58.40-Z-1001-02A Inert gas welder
WE58.40-Z-1002-02A Spot welder
WE58.40-Z-1001-03A Drill (electric/pneumatic)
WE58.40-Z-1002-03A Straight grinder (electric/pneumatic)
WE58.40-Z-1003-03A Angle grinder (electric/pneumatic)
WE58.40-Z-1004-03A Body saw (electric/pneumatic)
WE58.40-Z-1005-03A Wet/dry vacuum cleaner
WE58.40-Z-1003-14A Blind rivet tool
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1003-01A Sealant A 001 989 63 20
BR00.45-Z-1041-01A Seam sealant, sprayable 310 ml A 002 989 84 20
BR00.45-Z-1003-05A Preservation agent A 000 986 72 70 05
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1001-13A Rivet A 003 990 35 97
