Remove/install side air outlet - AR68.10-P-1100TX

MODEL 219.3

Shown on left door air outlet

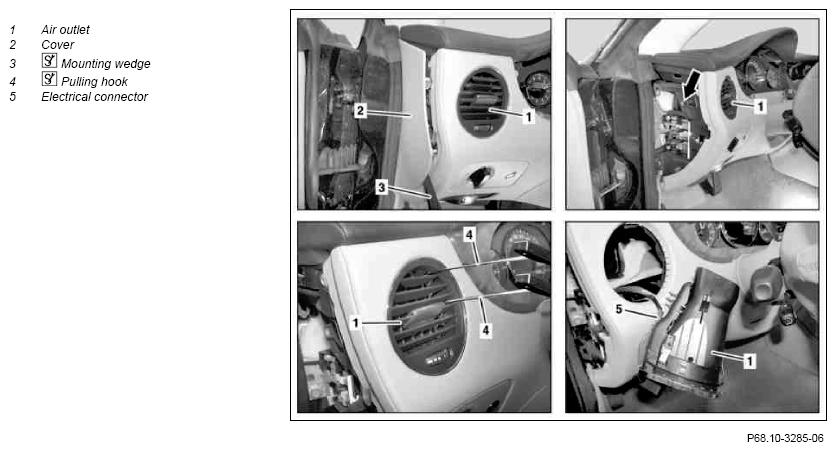

Fig 1: Identifying Side Air Outlet Remove/Install Components - Shown On Left Door Air Outlet

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Unclip cover (2) from instrument panel (2) with mounting wedge (3)		Figure
2	Pull air outlet (1) out with pulling hook (4)	Do not damage guide (arrow) on air outlet (1).
		Ensure that air outlet (1) arrests properly	Fig 3
3	Remove air outlet (1) from instrument panel until electrical connector (5) is accessible	Guide (arrow) on air outlet (1) should engage in instrument panel
4	Disconnect electrical connector (5) from air outlet illumination
5	Remove air outlet (1)
6	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
