Remove/install center air outlet - AR68.10-P-1150TX

MODEL 219.3

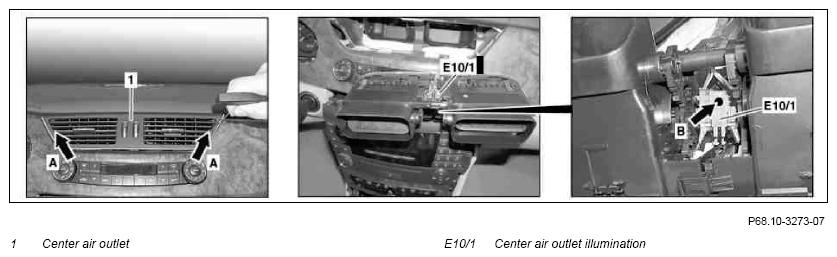

Fig 1: Identifying Center Air Outlet Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Pull center air outlet (1) out with pulling hook on left and right (arrows A)	Ensure that center air outlet (1) arrests properly.
			Figure
2	Remove center air outlet (1) from instrument panel until center air outlet illumination (E10/1) is accessible
3	Press against housing (arrow B) and unclip center air outlet illumination (E10/1)	Ensure that center air outlet illumination (E10/1) is positioned correctly
4	Remove center air outlet illumination (E10/1) from center air outlet (1) and allow to hang on electrical line
5	Remove center air outlet (1)
6	Install in the reverse order

Fig 2: Identifying Pulling Hook (140 589 02 33 00)

Courtesy of MERCEDES-BENZ USA
