Attaching engine supporting frame and lifting engine - AR33.10-P-0100-01P

Fig 1: Identifying Engine Lifting Fixture (240 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Alternatively the engine lifting device (01) or engine carrier arm (1) can be used.

Engine carrier arm (1) see GOTIS

http://gotis.aftersales.mercedes-benz.com

Put on engine carrier arm

1. Mount engine carrier arm (1) with its supports on the inner folds of the right and left fender (arrows).

   In the process ensure that the paint on the two fenders is not damaged.

2. Lift engine by the front lifting eye.

   Engine carrier arm, shown on model 203 with engine 111

   Fig 2: Identifying Engine Carrier Arm

   Courtesy of MERCEDES-BENZ USA

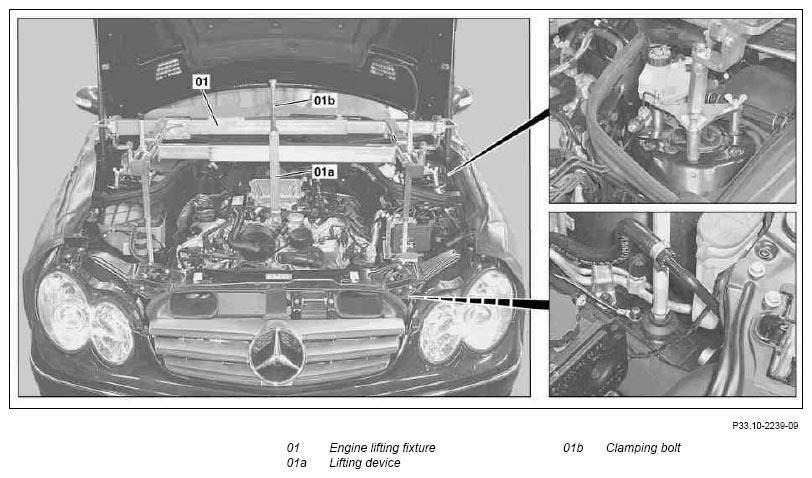

   Fig 3: Identifying Engine Lifting Fixture, Clamping Bolt And Lifting Device

   Courtesy of MERCEDES-BENZ USA

   Engine lifting device, shown on model 209 with engine 272

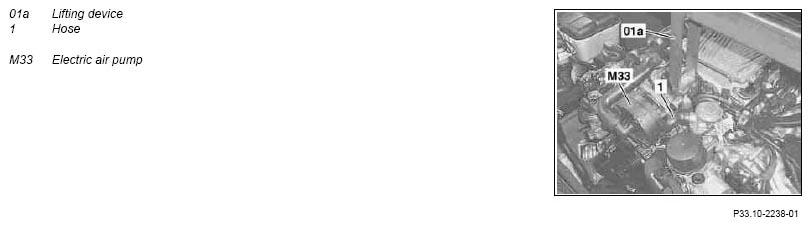

   Fig 4: Identifying Lifting Device, Hose And Electric Air Pump

   Courtesy of MERCEDES-BENZ USA

Mount engine lifting device

Observe the manufacturer's assembly specifications and safety information on the engine hoist (01), in order to avoid assembly faults.

1. Mount preassembled engine hoist (01) on the strut towers and longitudinal member.

   When mounting ensure that no lines or hoses are pinched and no paint is damaged in the area of the area of the longitudinal member and suspension strut tower.

2. Adjust the engine hoist (01) and tighten the bolted connections.
3. Detach the hose (1) from the electrical air pump (M33).

   Only on vehicles with engine 271, 272, 273.

4. Mount lifting device (01a) on the front engine lifting eye.
5. Tighten clamping bolt (01b) and raise engine.
