Removing and installing driver's side interior fuse box - AR54.15-P-1310Q

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209

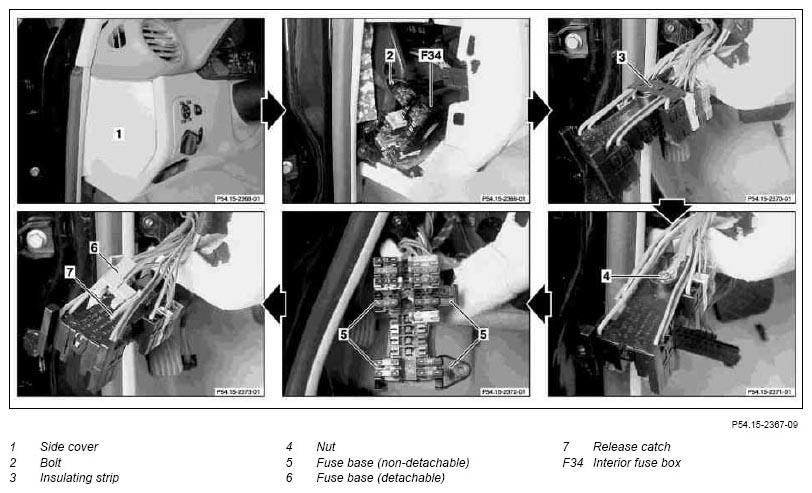

Fig 1: Identifying Driver Side Interior Fuse Box Components
G07718308Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/Install
DANGER Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries No fire, sparks, naked flames or smoking. Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers. AS54.10-Z-0001-01A
1 Disconnect ground cable of battery AR54.10-P-0003Q
NOTES Notes on battery All models AH54.10-P-0001-01A
2 Unclip side cover (1) and remove
3 Unplug fuses IMPORTANTInstallation:  Observe installation position of fuses.
4 Unscrew bolt (2)
5 Remove interior fuse box (F34)
6 Remove insulating strip (3) NOTES Lever off carefully (danger of damaging).
7 Unscrew nut (4)
8 Disconnect terminal 30 cable from interior fuse box (F34)
9 Release female contacts and pull out of interior fuse box (F34) IMPORTANTInstallation:  Note installed position of cables (mark for identification). Ensure that the female contacts are correctly locked.
IMPORTANT Only release female contacts in fuse base (non-detachable) (5).

SPECIAL TOOL Fig 2
Disconnect cables from control modules and fuse and relay boxes AR54.18-P-1261-01QA
10 Unclip fuse base (detachable) (6) from interior fuse box (F34) IMPORTANT Push release catches (7) inwards and pull fuse base (detachable) (6) out of interior fuse box (F34).
IMPORTANTInstallation:  Observe installation position of fuse base (detachable) (6) (mark for identification).

Disconnect cables from control modules and fuse and relay boxes AR54.18-P-1261-01QA
11 Install in the reverse order
12 Perform basic programming   AR00.19-P-0200Q
13 Read diagnostic trouble code memory and erase IMPORTANT STAR diagnosis tool.
14 Check for proper function
Fig 2: Identifying Release Tool For SPT/JPT Contacts (210 589 02 33 00)
G07718309Courtesy of MERCEDES-BENZ USA
