Removing and installing Parktronic system (PTS) warning display in instrument panel - AR54.65-P-0003Q

WARNING: This page is about a different car, the 2009 Mercedes-Benz CLK350 and 2008 Mercedes-Benz CLK350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 209 with CODE (220a) Parktronic System (PTS)

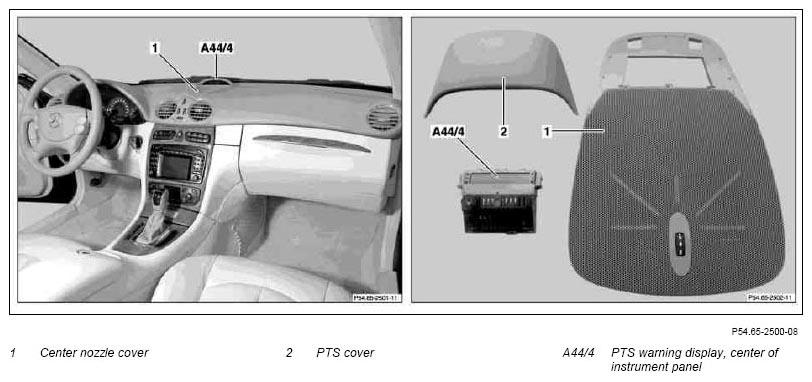

Fig 1: Identifying PTS Warning Display, Center Nozzle Cover And PTS Cover

Courtesy of MERCEDES-BENZ USA

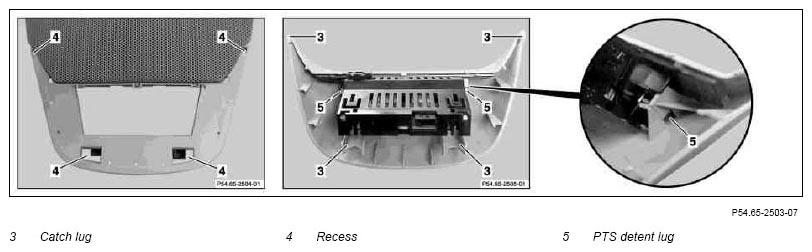

Fig 2: Identifying PTS Detent Lug, Recess And Catch Lag

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

20.1.04

Disconnect/connect/remove ground lead from battery

	Removal/installation
1	Unclip center nozzle (1) and remove		Fig 3
2	Disconnect electrical connectors
3	Unclip PTS cover (2)	Carefully unclip detent lugs (3) from the recess clearances (4)
4	Unclip center instrument panel PTS warning indicator (A44/4) from PTS cover (2)	To prevent damage avoid exposing the PTS warning display panel in the Center instrument panel PTS warning indicator (A44/4) from external force. The center instrument panel PTS warning indicator (A44/4) is secured by PTS detent lugs (5)
5	Install in the reverse order
6	Perform function check

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
